Fig. A.2

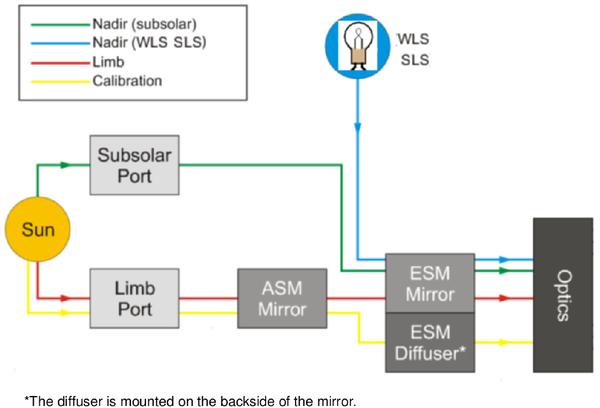

Schematic view of SCIAMACHY monitoring light paths. SCIAMACHY has three light paths used for scientific measurements, namely: the calibration (ASM mirror and ESM diffuser), limb (ASM mirror and ESM mirror), and nadir (ESM mirror). Shown also are internal light sources, namely: white light (WLS) and spectral line (SLS) sources for in-flight irradiance and wavelength calibration purposes, respectively (cf. Sect. A.2). Source: Modified Figs. 5, 6 of Gottwald et al. (2006).
