Planck early results
Free Access

Fig.9

thumbnail

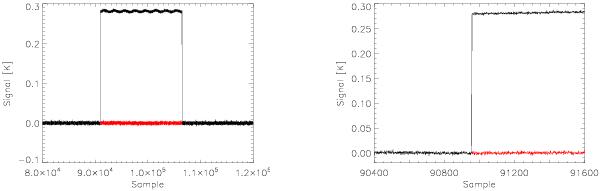

Gap filling procedure applied to LFI28M for day 239. The upper panel shows the original TOI (black) where a step is caused by a DAE gain change that produces saturated data. The (red) lines show the constrained noise realization used to replace those data. The lower panel shows a zoom around the position of the step to highlight the consistency of the gap filling data with the unflagged part of the TOI.

This figure is made of several images, please see below:
