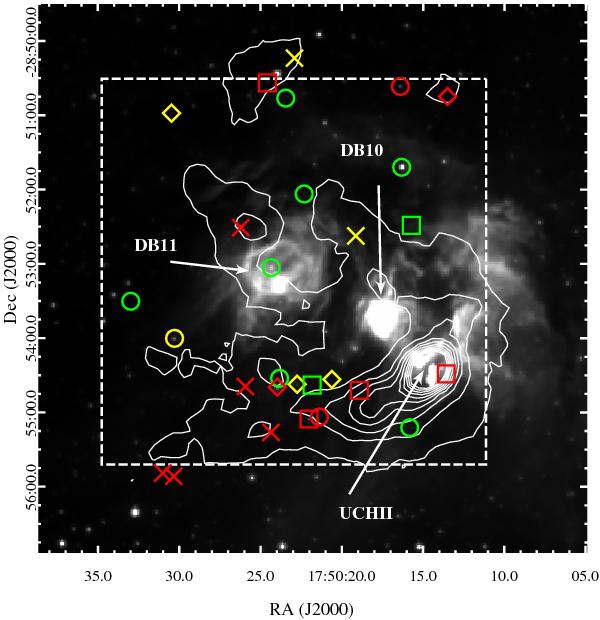

Fig. 4
IRAC 8 μm image with the marked positions of the identified YSOs. Crosses correspond to objects which are not identified in the JHKS bands. Diamonds are objects identified only in KS, squares are objects identified in H and KS, circles are objects identified in J, H and KS. Class I objects are in red, class II in green, reddened class II sources in yellow. The dashed box corresponds to the observed SofI field. The contours trace the emission of cold dust at 870 μm from the ATLASGAL survey of the Galactic plane. Contour levels are between 0.5 and 9.5 Jy/beam in steps of 1.0 Jy/beam.
