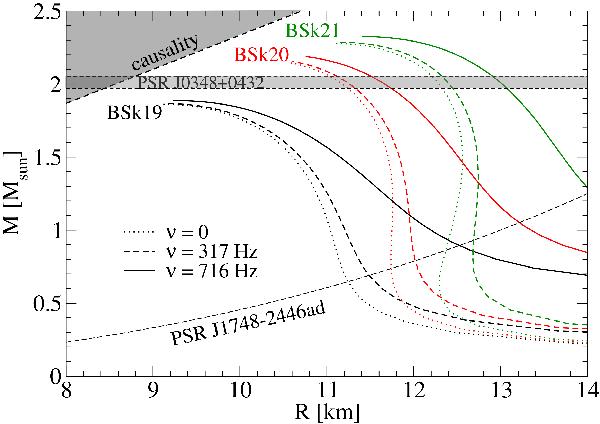

Fig. 7
Gravitational mass versus circumferential radius relation for non-rotating and rigidly rotating NSs for the Brussels-Montreal EoSs based on the EDFs BSk19-20-21. The horizontal band corresponds to the measurement of the mass of PSR J0348+0432 (Antoniadis et al. 2013). The dashed line represents the mass-shedding limit for PSR J1748−2446ad (Hessels et al. 2006). The shaded area in the top left-hand corner, delimited by R > 2.9GM/c2, is excluded by causality (Glendenning 2000).
