Fig. 4

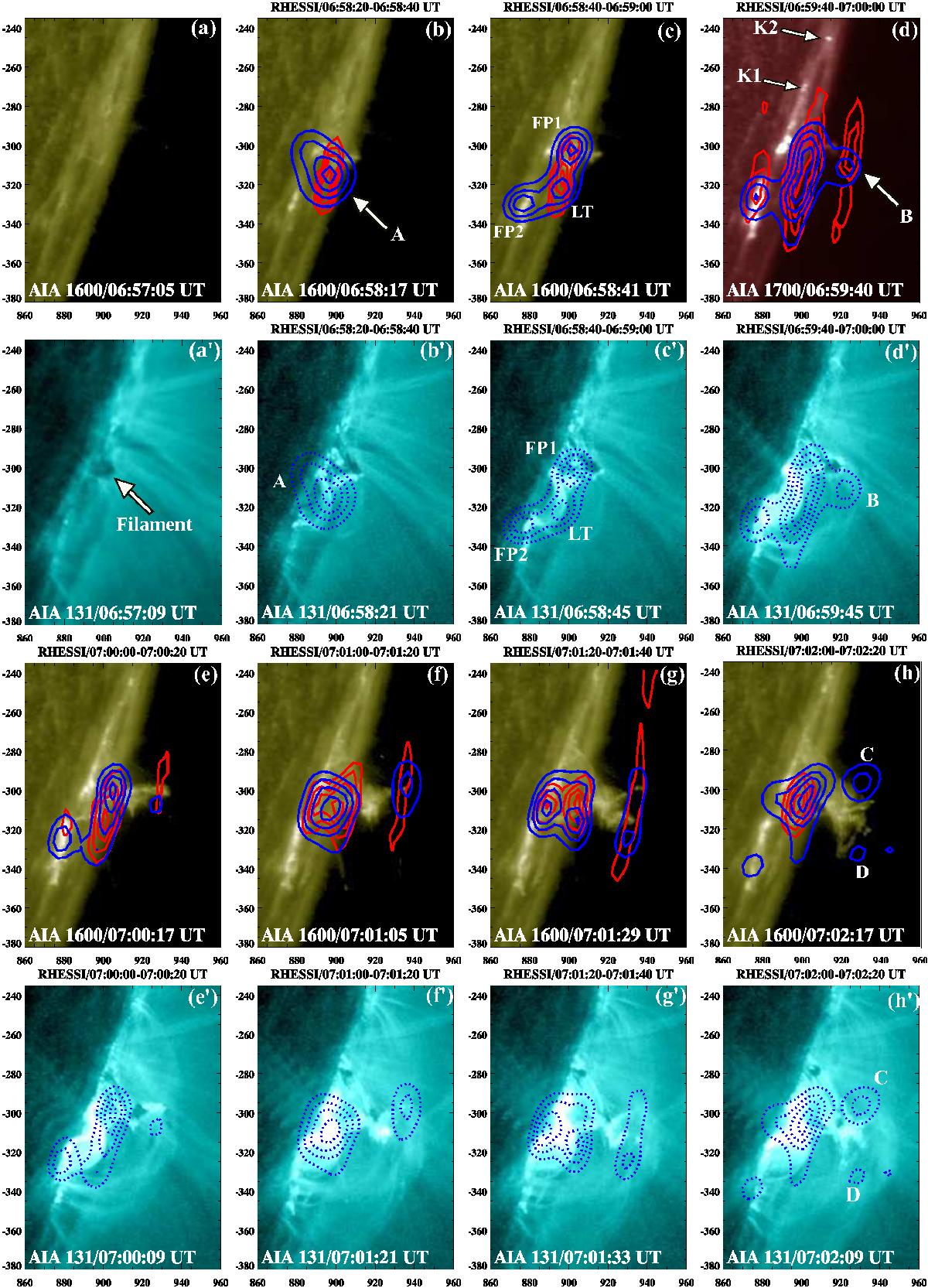

SDO/AIA 1600, 1700, and 131 Å images overlaid with the RHESSI hard X-ray image contours in the 6−12 keV (red) and 12−25 keV (blue) energy channels. The contour levels are 30%, 50%, 70%, and 90% of the peak intensity.
This figure is made of several images, please see below:
