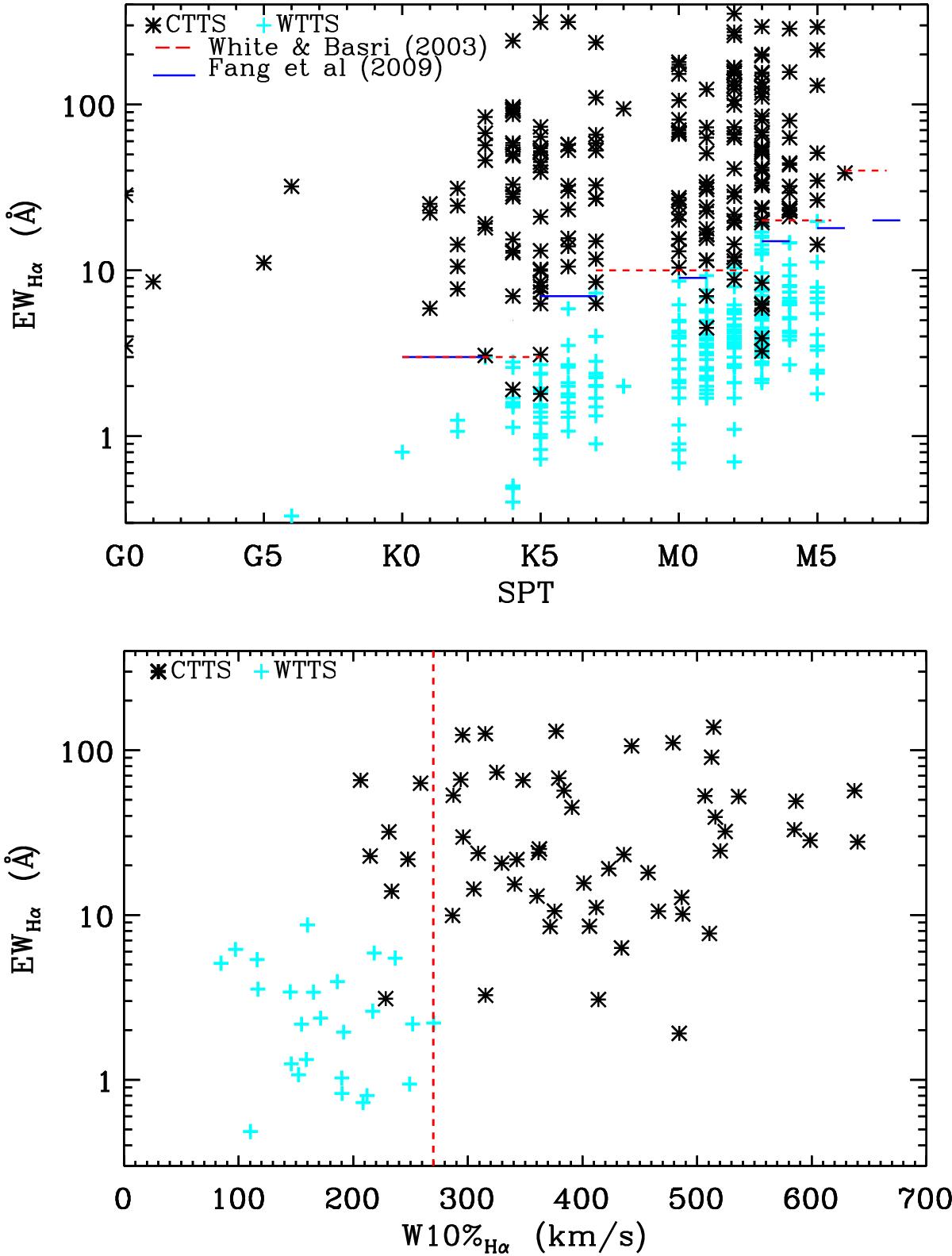

Fig. 2


Spectroscopic criteria used to select CTTSs and WTTSs in NGC 2264. CTTSs are shown as asterisks and WTTSs as plus signs. Top: Hα equivalent width vs. spectral type for our sample of stars. Dashed horizontal lines represent the White & Basri (2003) classification threshold and solid horizontal lines the Fang et al. (2009) proposed criteria. Bottom: Hα equivalent width vs. Hα width at 10% of maximum intensity. The dashed vertical line is drawn at 270 km s-1, the separation between CTTSs and WTTSs, according to White & Basri (2003). A few stars do not satisfy one spectroscopic CTTS criterion, but they were classified as CTTSs either based on the other spectroscopic criterion or on the UV excess.

This figure is made of several images, please see below:
