Fig. 7

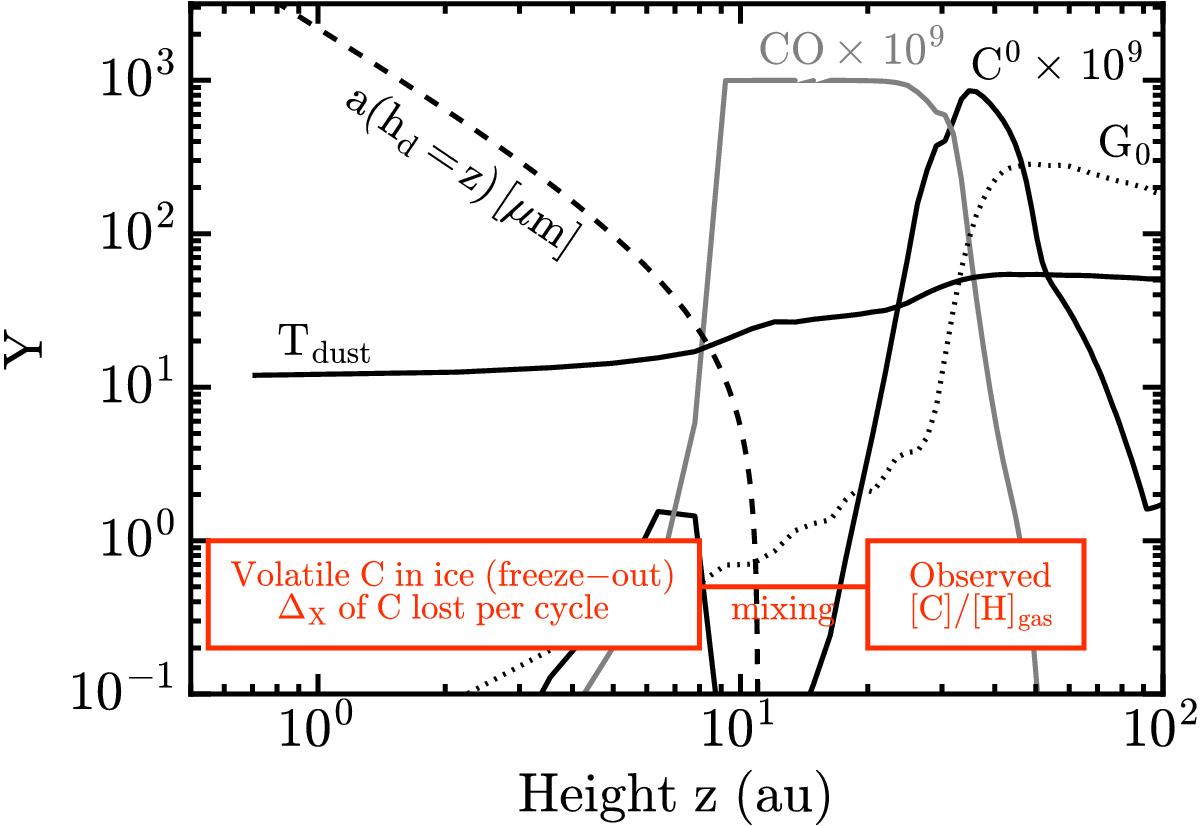

Vertical structure of the TW Hya model at r = 100 au. Y denotes either the dust temperature (Tdust [K]), UV-field (G0), gas-phase CO and C0 abundance, or the grain size (a [μm]) of particles with a scaleheight hd equal to a given height z (see Eq. (5)). Vertical mixing can transport carbon atoms from the C0 layer to the freeze-out zone.
