Fig. 4

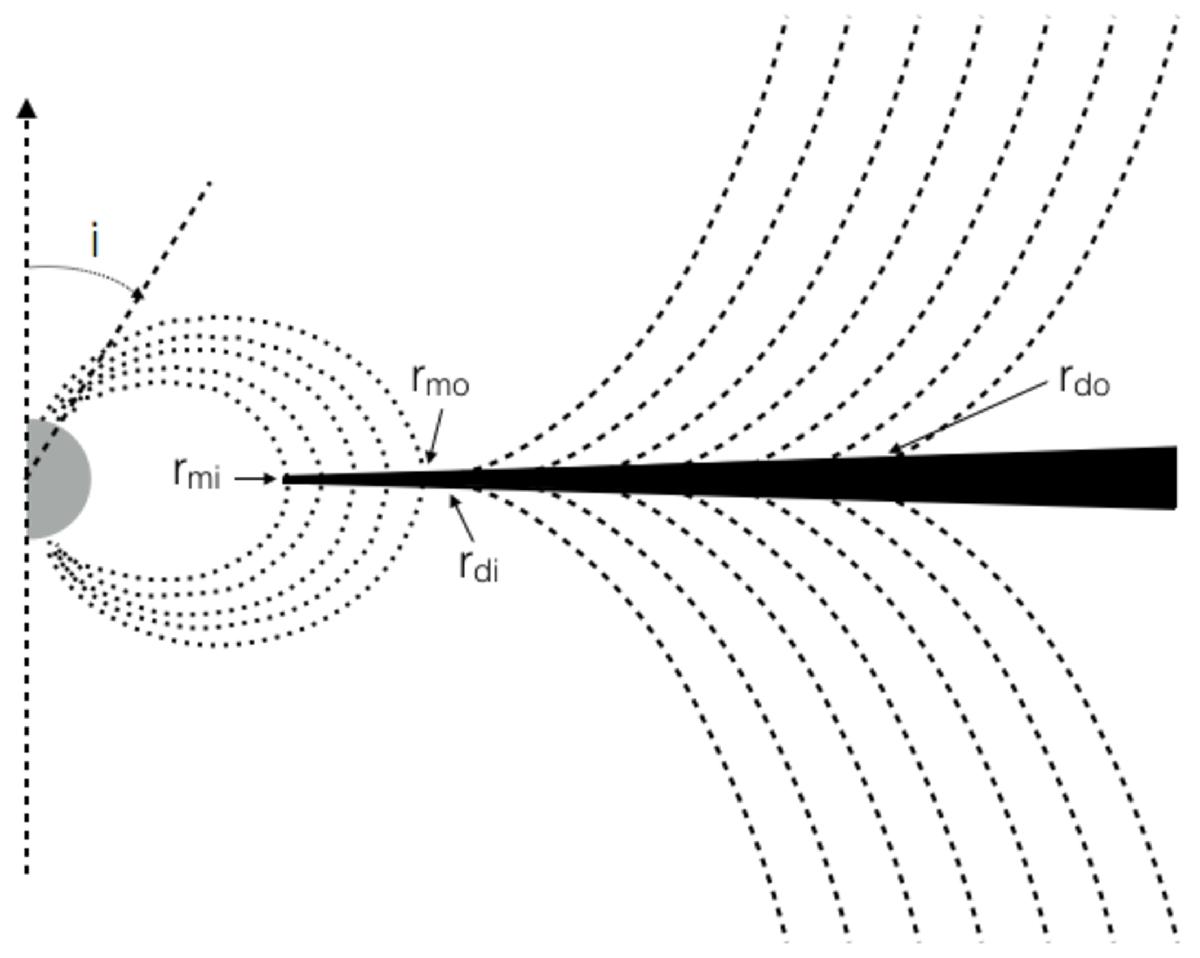

Our composite model (not to scale) including a disk wind and magnetospheric accretion columns. The dotted lines represent the dipolar magnetospheric field lines. The disk (in black) has a constant aspect ratio H/r. The dashed lines are parabolic trajectories that represent the disk wind streamlines. Figure adapted from Lima et al. (2010).
