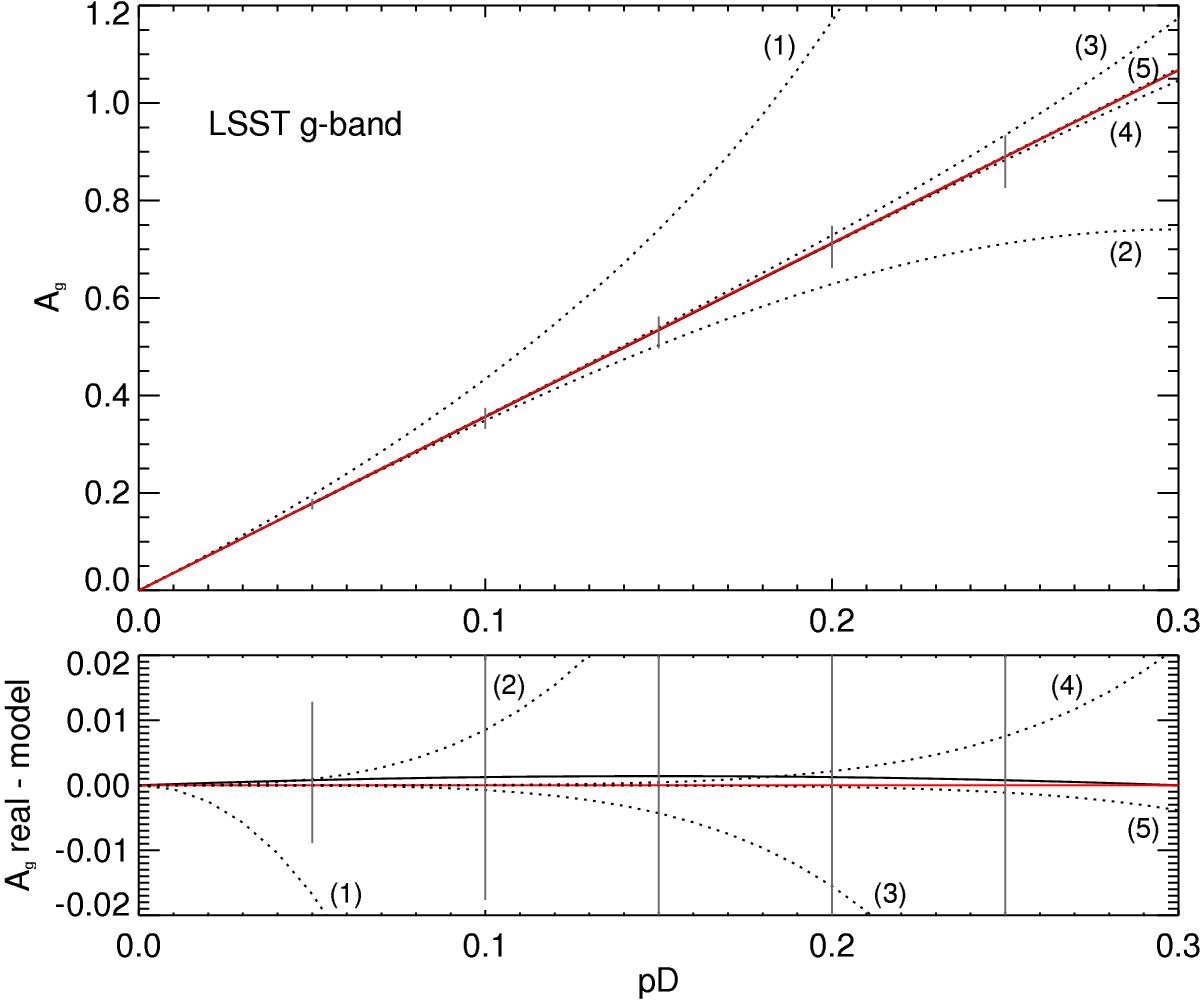

Fig. A.1


Top panel: galactic extinction in the LSST g filter (in magnitude) as a function of the value of pD along the line of sight for an elliptical galaxy with no intrinsic dust () at z = 0.1 (in red). A linear approximation Ag = apD where a the slope between (0,0) and (0.3,Ag(0.3)) is shown in black. The first cumulative orders of the mathematical decomposition of this function in Taylor series are shown by the dotted lines (see Eq. (A.2); , etc.). The grey vertical lines indicate the range of Galactic extinction at fixed pD for a library of 2604 extragalactic source SED (see Sect. 3.5). Bottom: differences between the real value of Galactic extinction computed from Eqs. (1) and (2) and the linear and Taylor series approximations. The scatter of extinction values for a range of SEDs is also reproduced in grey.
