Fig. 8

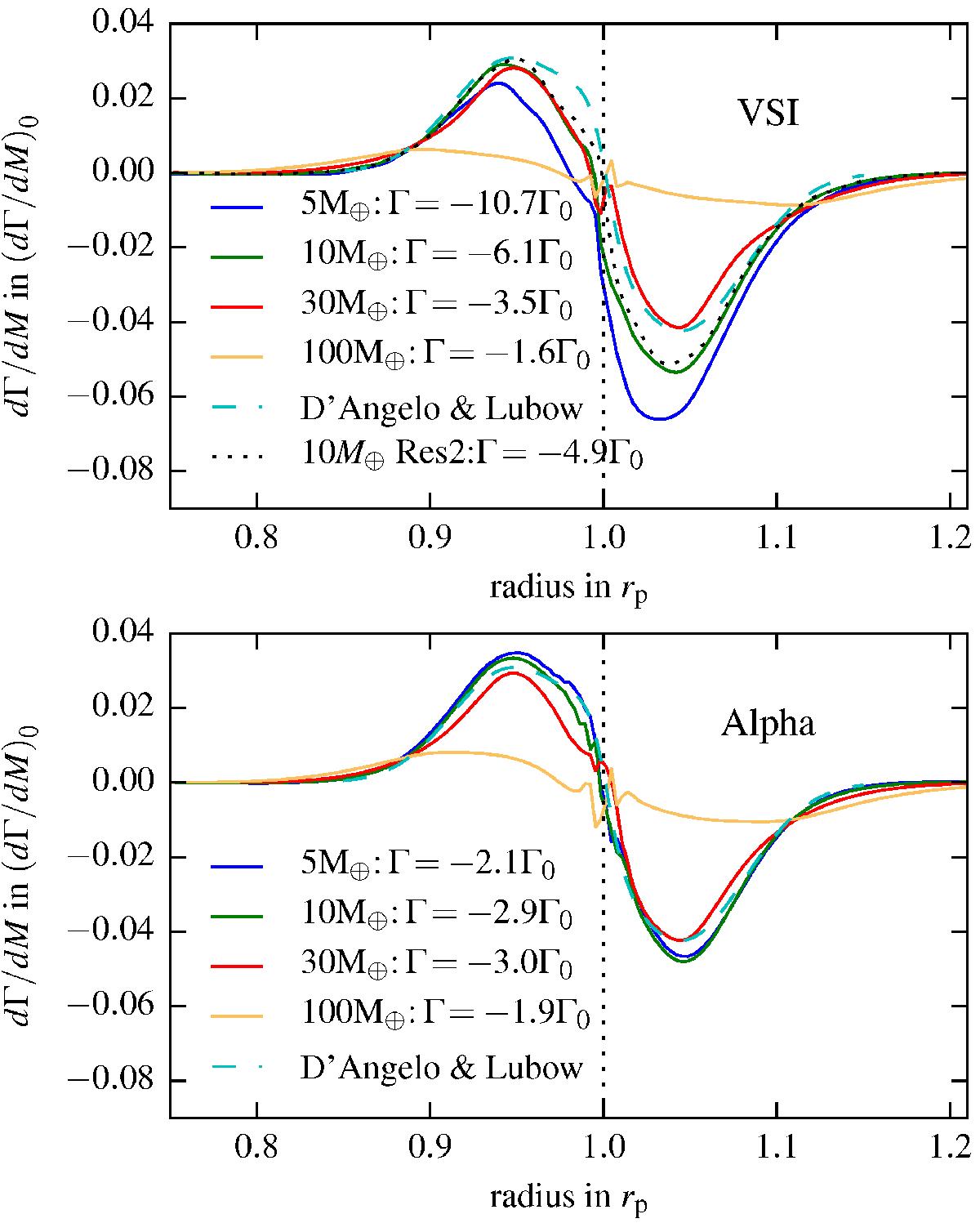

Torques on the planets normalised by (dΓ/dM)0, see Eq. (10). Upper panel: planet embedded into a disc with VSI. The inner torques are smaller then expected and the outer torques are stronger. Lower panel: planet embedded into a disc with generic α-viscosity. The torques are very similar to the results of D’Angelo & Lubow (2010). In both simulations the torques for the heaviest planet are reduced, due to the lower surface density in the gap.

This figure is made of several images, please see below:
