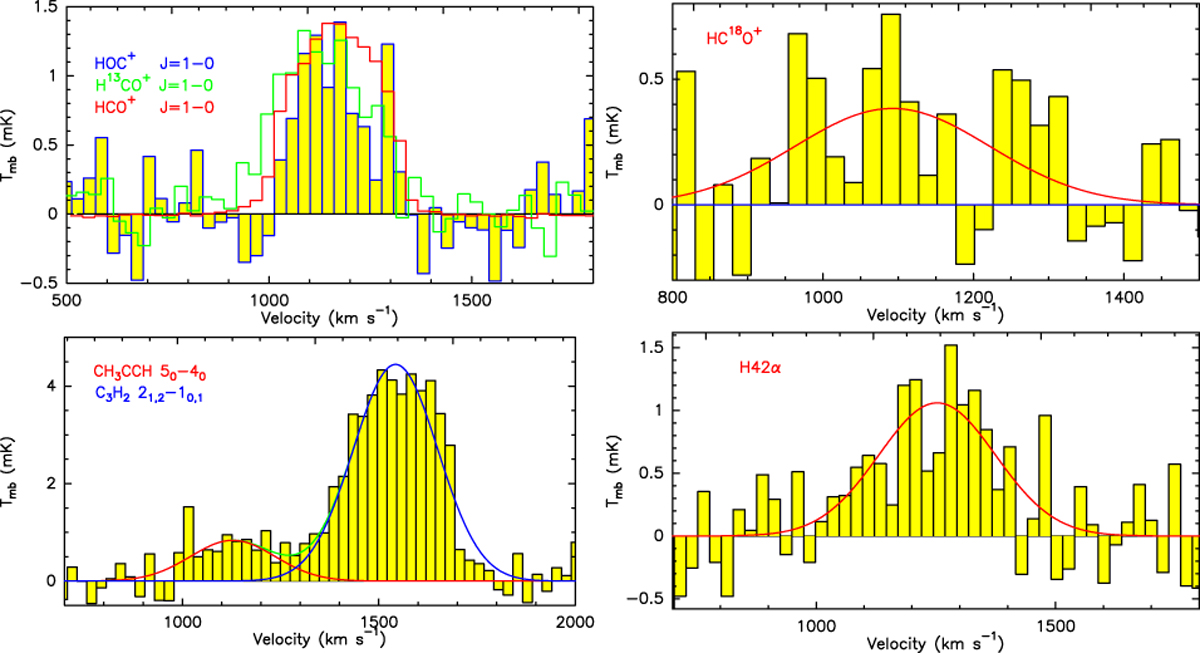

Fig. 2
Left upper: HOC+ (1–0) (blue line and filled yellow) overlaid with H13CO+ (1–0) (green line, divided by 2), and HCO+ (1–0) (red line, divided by 38). The RMS is 0.30 mK for HOC+ (1–0) at a velocity resolution of 29.44 km s−1. The RMS is 0.31 mK for H13CO+ (1–0) at a velocity resolution of 30.37 km s−1. The RMS is 0.89 mK for HCO+ (1–0) at a velocity resolution of 29.54 km s−1. Right upper: HC18O+ (1–0) (filled yellow) and the Gaussian fitting profile (red line). The RMS is 0.27 mK at a velocity resolution of 24.75 km s−1. Left lower: CH3CCH (50–40) and c-C3H2 (21,2–10,1) (filled yellow), overlaid with the Gaussian fitting profiles (red for CH3CCH, blue for c-C3H2, and green for the combination of the two components). The RMS is 0.36 mK at a velocity resolution of 24.67 km s−1. Right lower: H42α (filled yellow) and Gaussian fitting profile (red line). The RMS is 0.43 mK at a velocity resolution of 24.60 km s−1.
