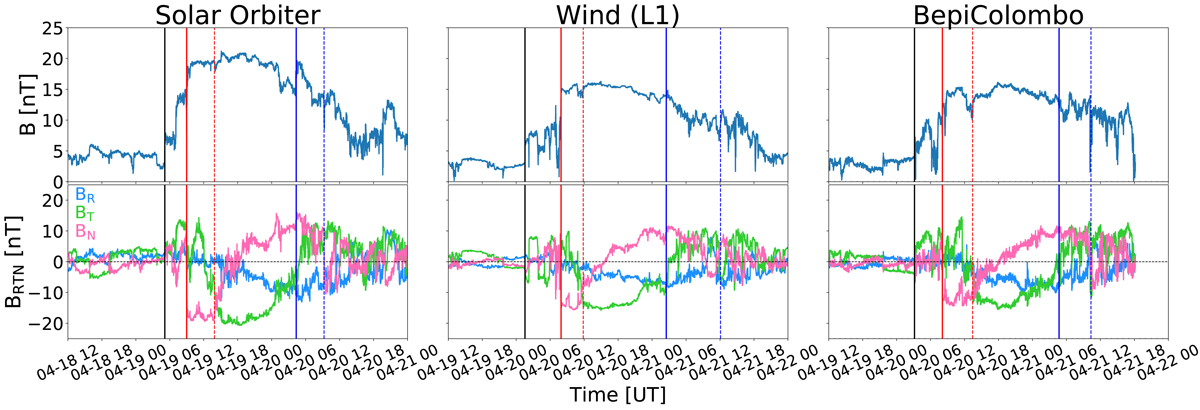

Fig. 2.
Download original image
Interplanetary magnetic field magnitude (upper panels) and components in RTN coordinates (lower panels) at Solar Orbiter, Wind and BepiColombo. Black vertical lines mark the shock. Solid and dashed red (blue) lines indicate the leading (trailing) edge times LE1 and LE2 (TE1 and TE2), respectively (see Table 2 and text for more details).
