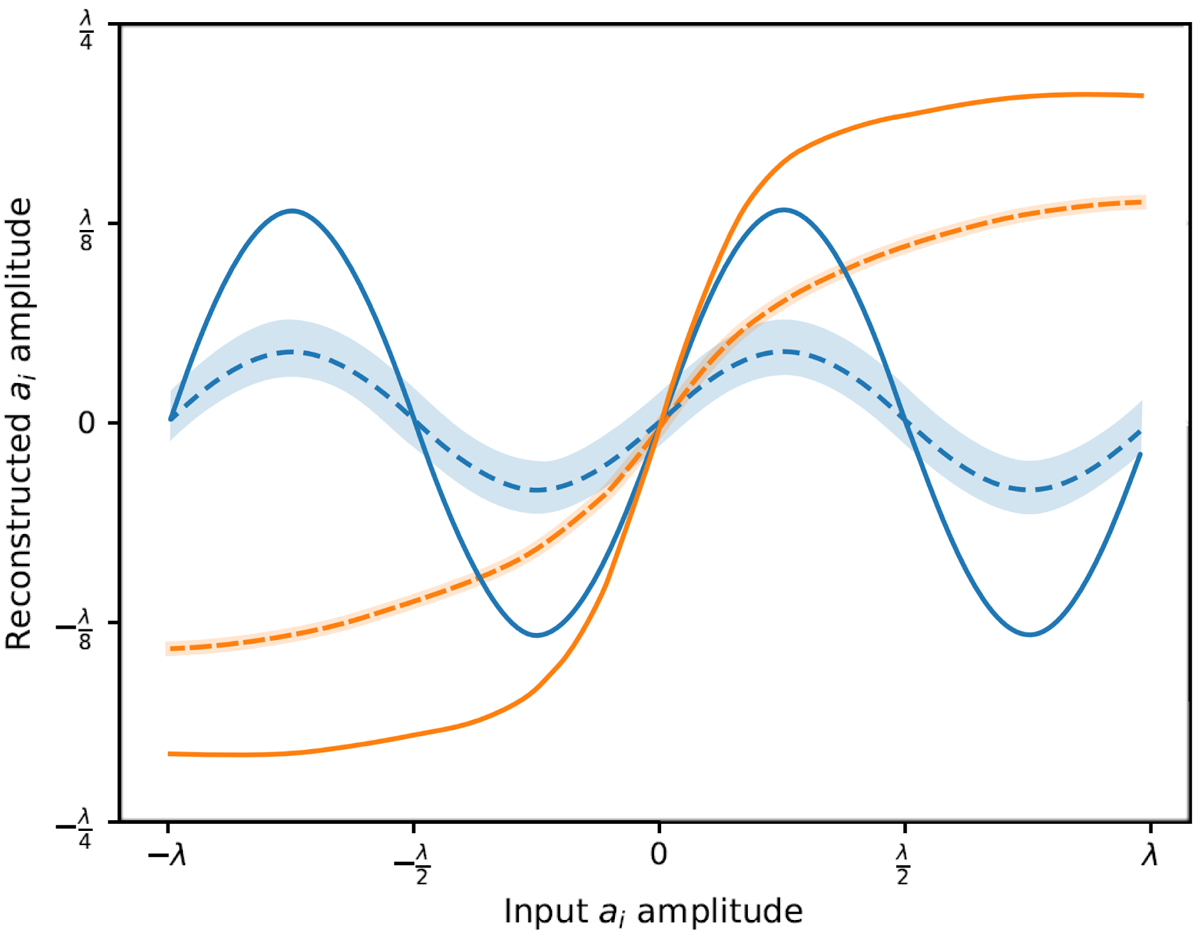

Fig. 4.
Download original image
Pyramid response to a petal mode ϕ1 (blue) and to a mode orthogonal to petals ϕ100 (orange) around calibration (plain line) and during operation (dashed line), i.e. around a residual wavefront ϕintra free of ΔP and obtained with a closed-loop system with r0 = 12.8 cm at 500 nm. The response in operation is an average over ten independent residual wavefronts with a shaded ±1σ error bar.
