Fig. B.3
Download original image

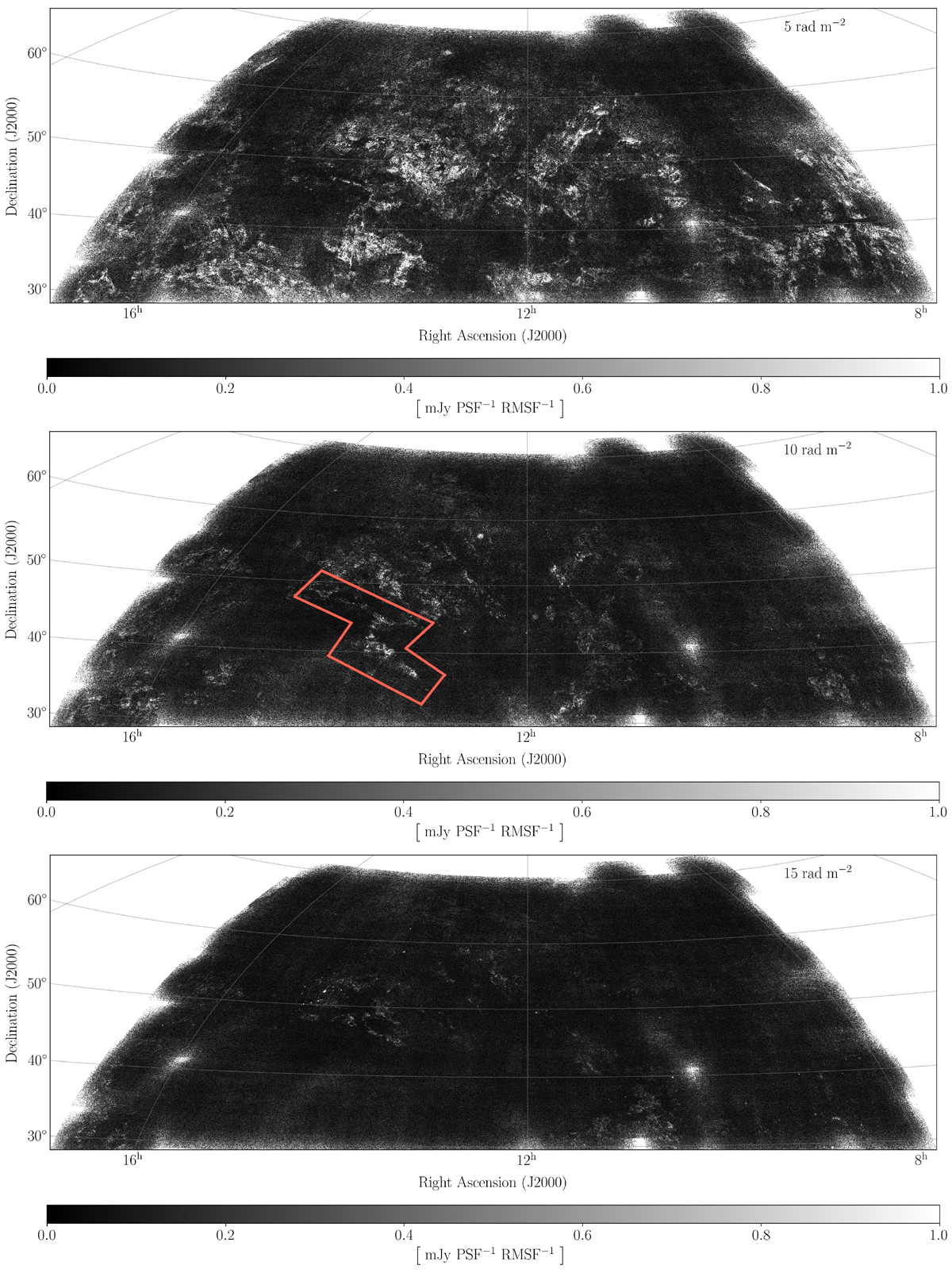

Slices from the mosaic Faraday cube at Faraday depths 5, 10, 15 rad m−2. Loop III emission in traces is seen at 5 rad m−2. While a part of the zig-zag structure can be seen in all of the panels, the area in which the zig-zag structure is best seen (at 10 rad m−2) is roughly outlined in red. At Faraday depths higher than 15 rad m−2, we see no emission.
