Fig. 9.
Download original image

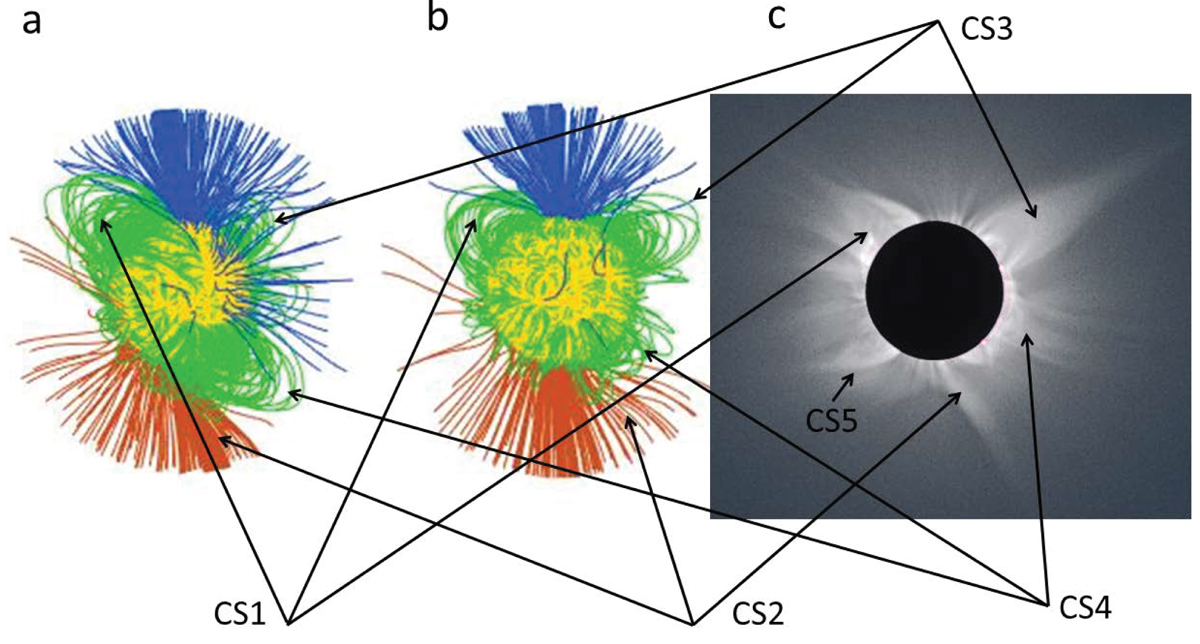

PFSS model of solar coronal fields for solar eclipse 11 June 1983 derived using (a) pseudo-magnetograms and (b) real magnetograms from NSO/KP, along with (c) their comparison with eclipse observations. Black arrows point to coronal streamers (CS) and the corresponding structures in PFSS model. Red blue lines show open magnetic fields with positive and negative polarity footpoints. Green lines are closed field lines.
