Fig. 13


Download original image

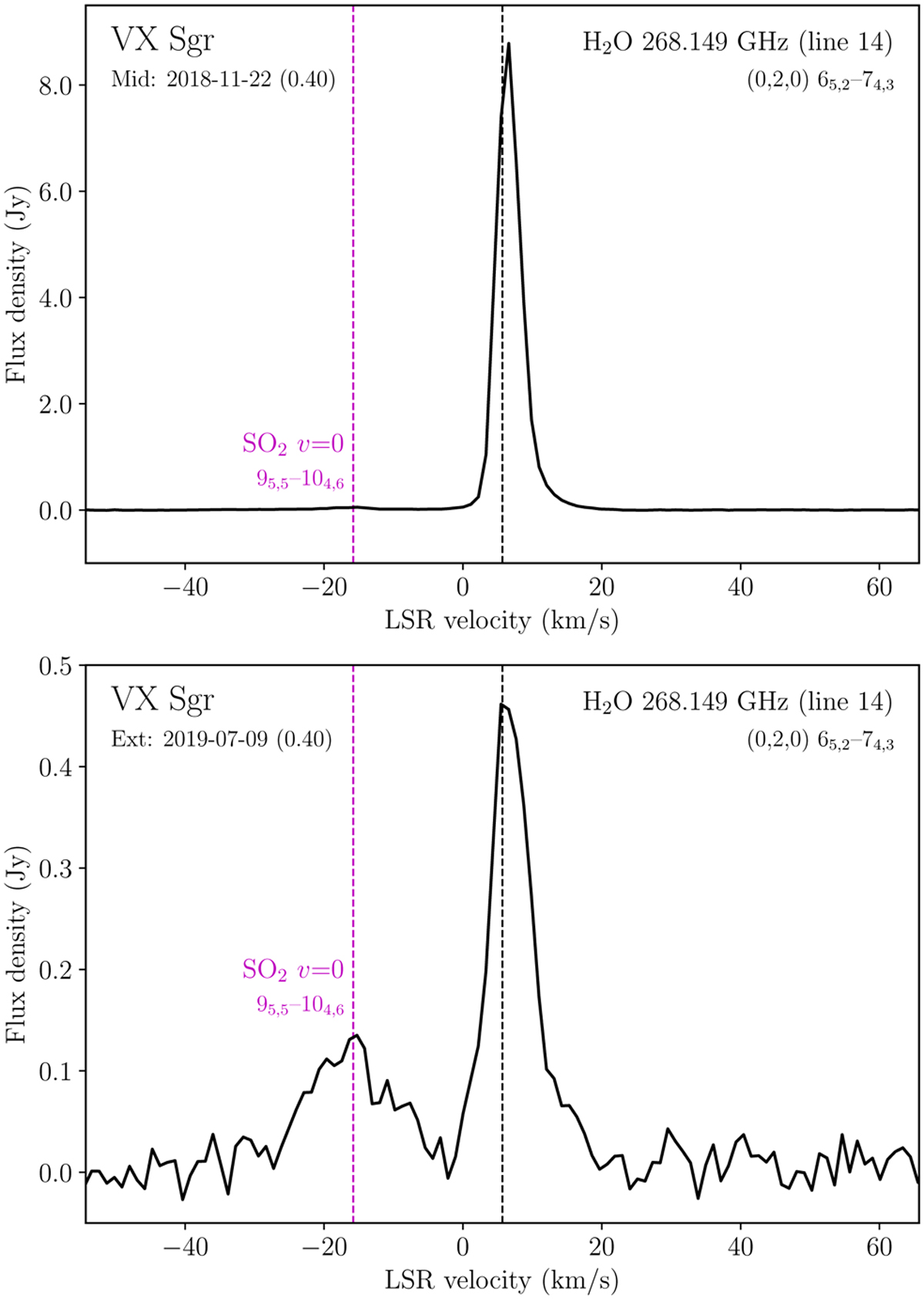

Comparison of the 268.149 GHz line profiles extracted for an aperture diameter of 0.″4 in VX Sgr observed at ∼1 km s−1 resolution in November 2018 and July 2019 with the mid and extended configurations of the main array (upper and lower panels, respectively). The weak feature near −20 km s−1 in the 2019 spectrum corresponds to the ν = 0, JKa,Kc = 95,5−104,6 transition oO SO2 at 268168.335 MHz; it is also barely seen in the 2018 mid spectrum. The vertical lines are at the adopted new LSR systemic velocity.
