Fig. 4
Download original image

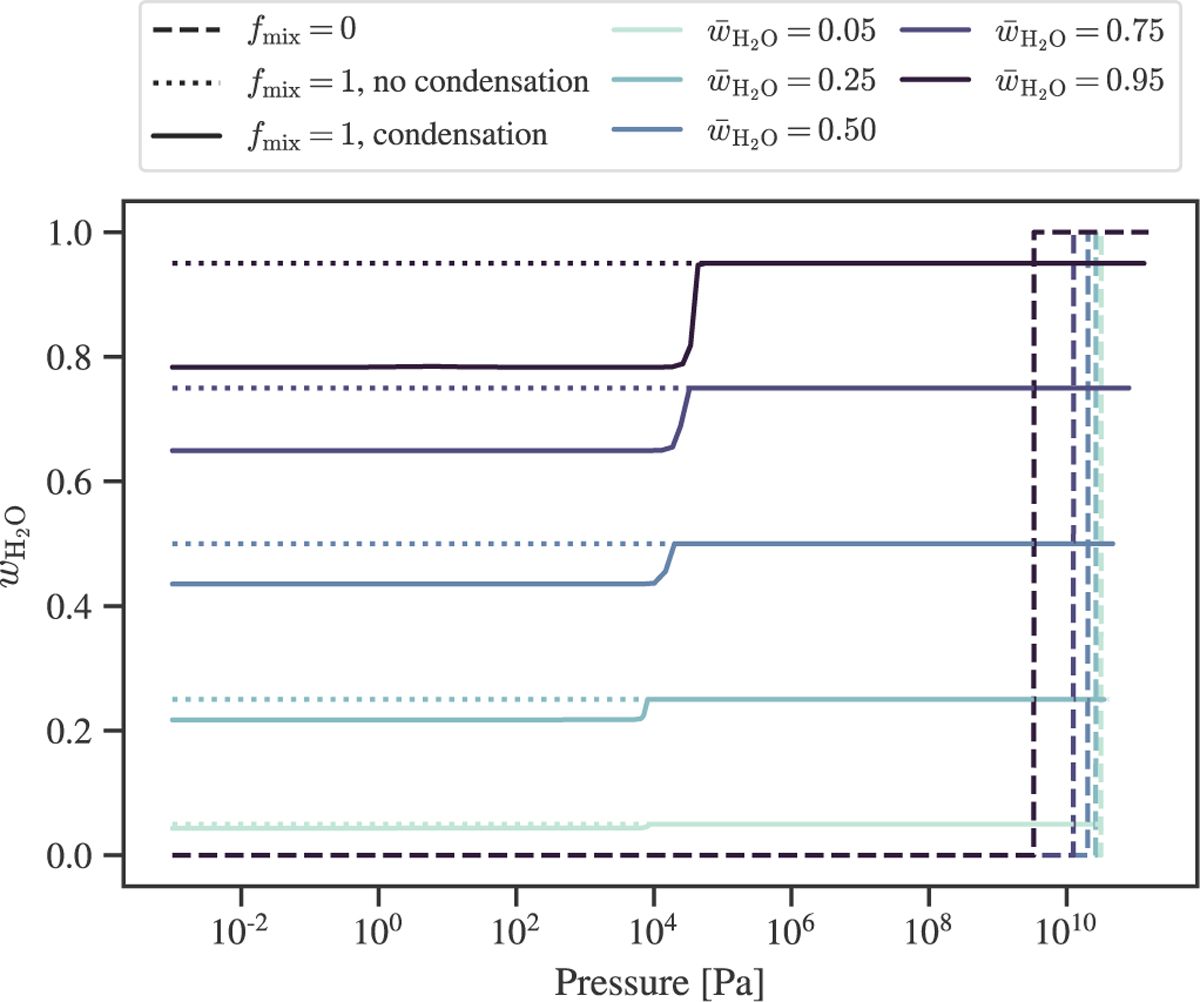

Different compositional gradients in the volatile layer of a 5 mE planet with wVol = 0.4 and water mass fractions in the volatile layer which span from 5% to 95%. Dashed lines: H2O and H/He do not mix. Dotted lines: all of the H2O is mixed into the H/He but without condensation. Solid lines: all of the H2O is mixed into the H/He but condensates are removed as described in Sect. 2.5.4.
