Fig. 9
Download original image

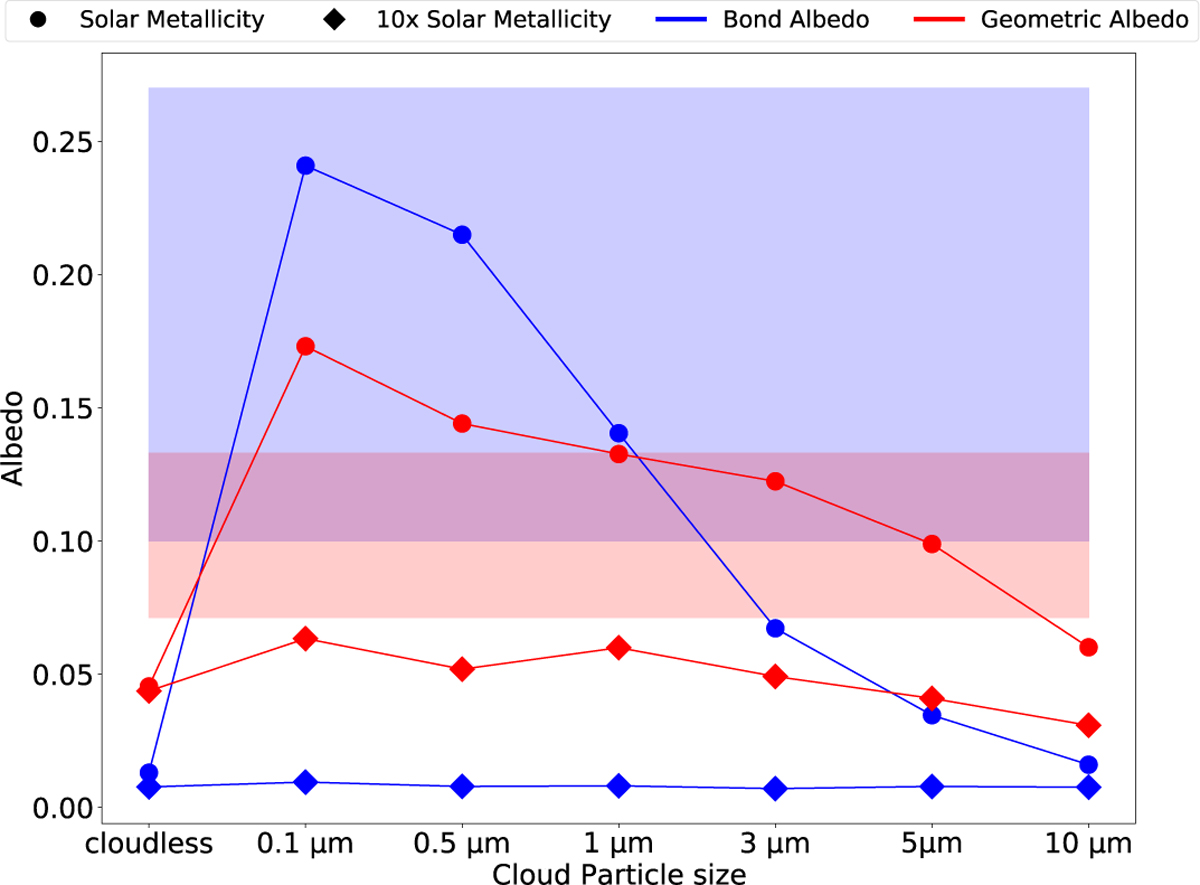

Disk-integrated Bond albedo and geometric albedo in the CHEOPS band (0.33−1.1 μm) for the cloudless and Mg2SiO4 cloud simulations at solar (circles) and 10× solar (diamond) metallicity. The red shaded area corresponds to the constraint on the geometric albedo derived by Scandariato et al. (2022). The blue shaded area corresponds to the estimated range of Bond albedo derived by Stevenson et al. (2017).
