Fig. D.2
Download original image

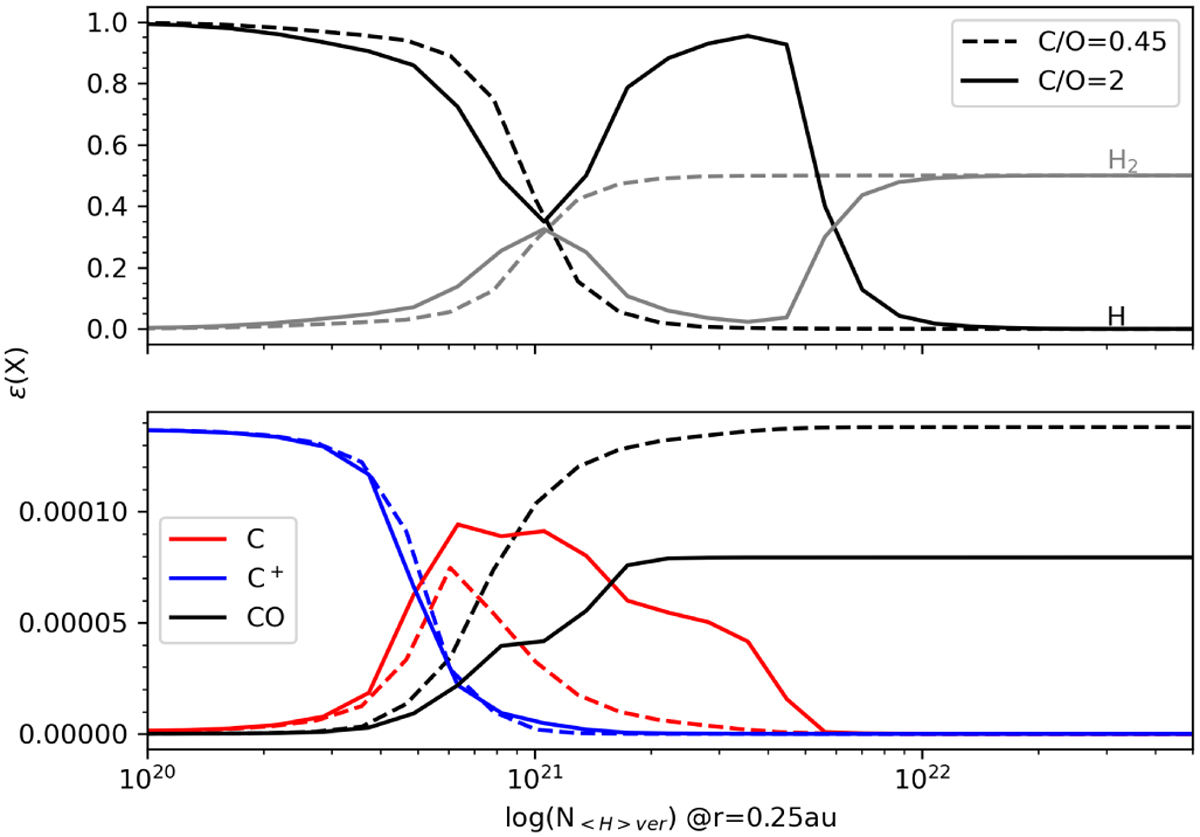

Effect of change in C/O ratio on various transitions. Top panel: H/H2 transition in the canonical (dashed lines) and enhanced C/O (solid lines) model at the radius of 0.25 au. Bottom panel: C+/C/CO transition layers in both models at the same radius.
