Fig. 6
Download original image

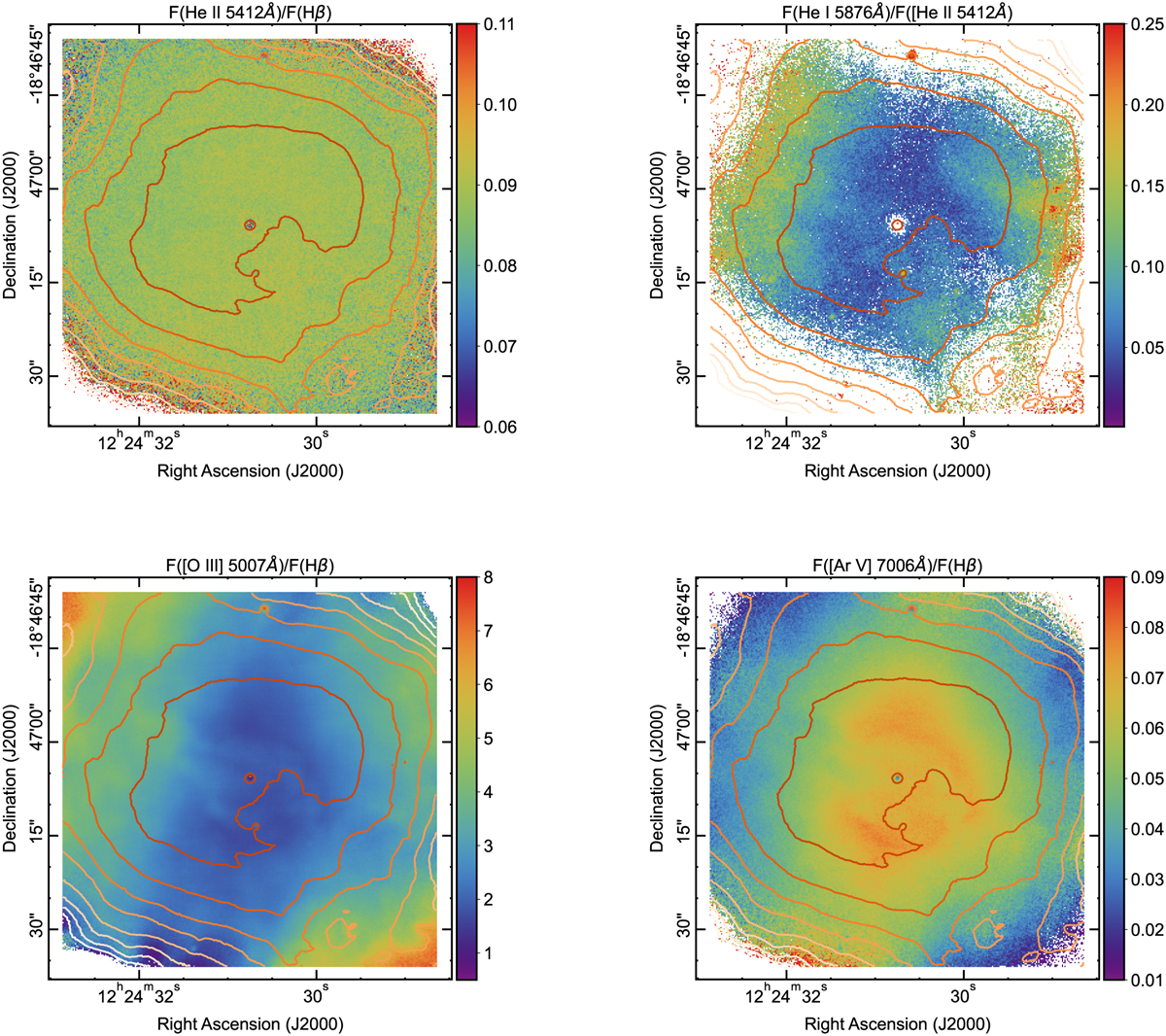

Ratio images of NGC 4361 in He lines (top): He II 5412 Å/Hβ (left) and He I 5876 Å/He II 5412 Å (right) demonstrating that a very large fraction of He is fully ionised throughout the nebula. Ratio images displaying the ionisation zones (bottom): [O III] 5007 Å/Hβ (left) for the medium ionisation zone and [Ar V] 7006 Å/Hβ for the highest ionisation (right).
