Fig. 6.


Download original image

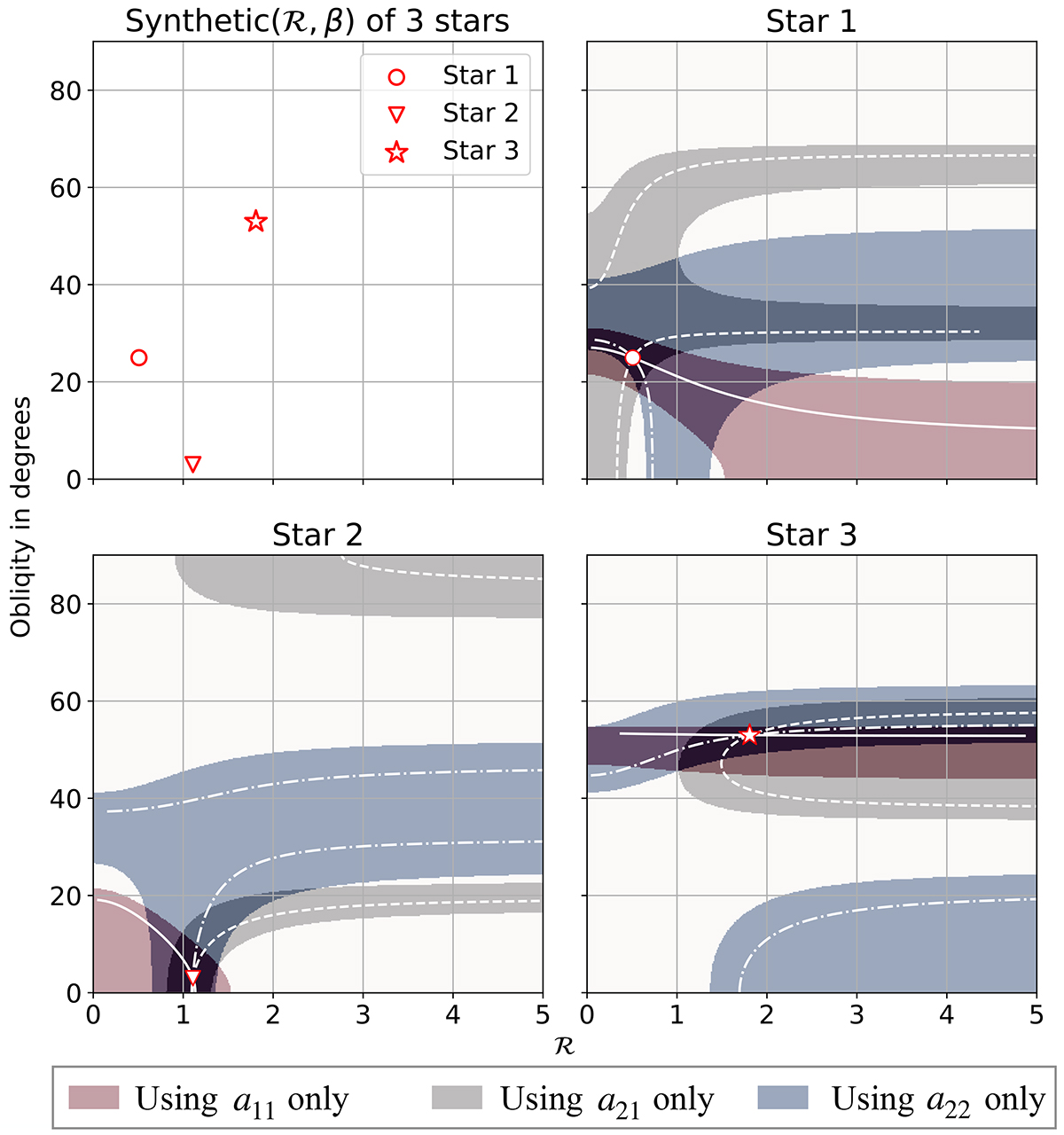

Overlapping bands of iso-asymmetry values across a11, a21, and a22 demonstrating the drastic reduction of degeneracy in (|ℛ|,β) space for a co-aligned quadrudipole when using  = 1 and  = 2 oscillation modes simultaneously. The white line, dashed line, and dashed-dotted line respectively indicate the analytical solution corresponding to the measurement of a11, a21, and a22 from Sect. 3.1. The width of colored bands indicating typical uncertainty on the measurement of the asymmetry parameters is chosen to account for the finite data frequency resolution of Kepler 4 years following Sect. 4.2.
