Fig. 9.
Download original image

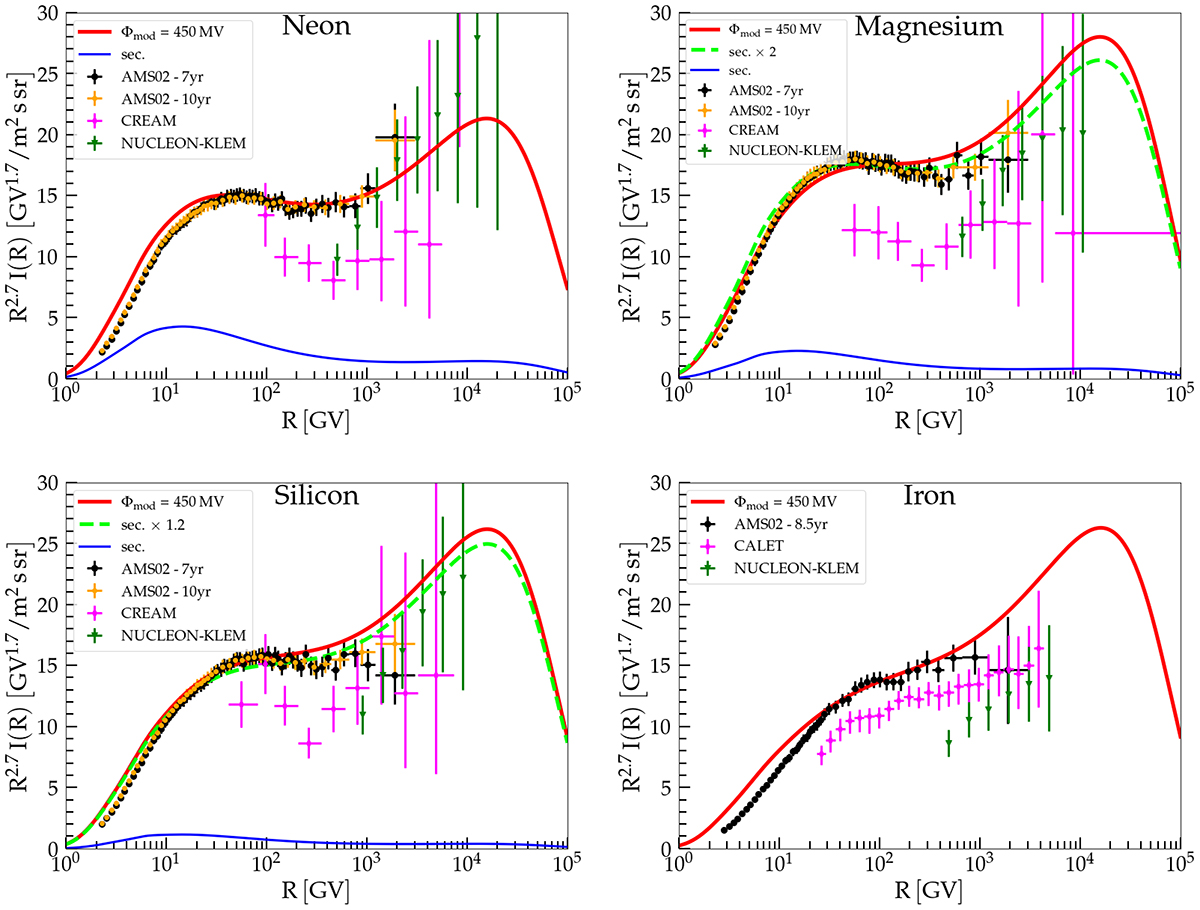

Ne, Mg, Si, and Fe modulated fluxes (red solid line) and their secondary component (blue solid line). Top left panel: Ne flux compared to the data of AMS02 (Aguilar et al. 2021d, 2023, black dots, yellow diamonds), CREAM (Ahn et al. 2009, magenta diamonds), and NUCLEON (Grebenyuk et al. 2019a, green triangles). Top right panel: Mg modulated flux compared to the data of AMS02 (Aguilar et al. 2021d, 2023, black dots, yellow diamonds), CREAM (Ahn et al. 2009, magenta diamonds), and NUCLEON (Grebenyuk et al. 2019a, green triangles). The dashed green line is obtained by multiplying the secondary component by 2. Bottom left panel: Si flux compared to the data of AMS02 (Aguilar et al. 2021d, 2023, black dots, yellow diamonds), CREAM (Ahn et al. 2009, magenta diamonds), and NUCLEON (Grebenyuk et al. 2019a, green triangles). The dashed green line is obtained by multiplying the secondary component by 1.2. Bottom right panel: Fe flux compared to the data of AMS02 (Aguilar et al. 2021a, black dots), CALET (Adriani et al. 2021, magenta diamonds), and NUCLEON (Grebenyuk et al. 2019a, green triangles).
