Fig. 2


Download original image

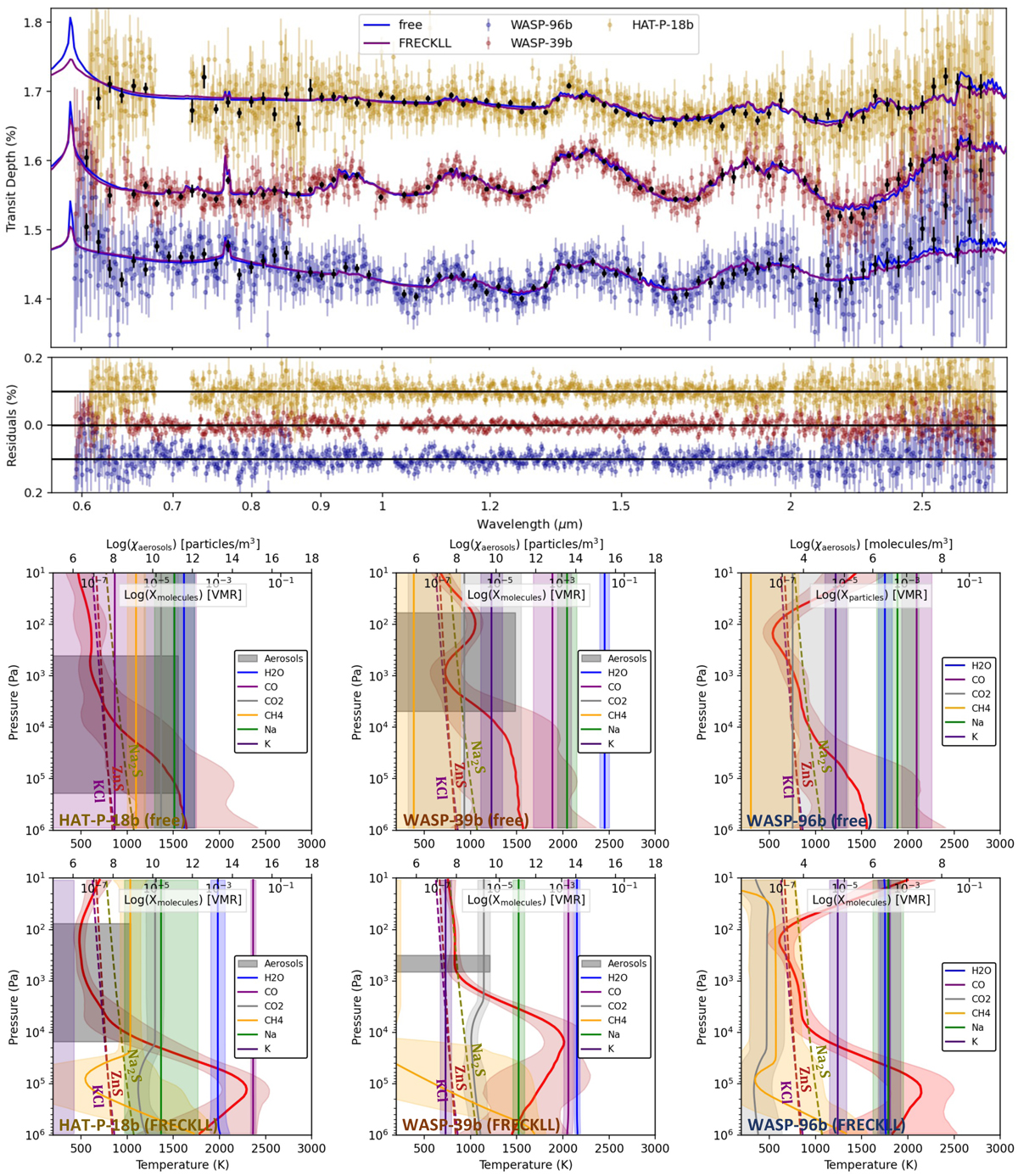

Results of the atmospheric retrievals using the Lee et al. (2013) cloud model for the NIRISS observations. The observed spectra, best-fit models (free chemistry in blue and FRECKLL chemistry in purple), and residuals for the FRECKLL retrieval are shown in the top panel. The lower panels show the retrieved T - p profiles and chemistry - free chemistry in middle row and FRECKLL chemistry in bottom row - with 1 σ confidence intervals, as well as the best-fit aerosol solutions. We also indicate the relevant cloud condensation curves from Wetzel et al. (2013); Gao et al. (2021) with dashed lines for context. Retrieved atmospheric properties are not always fully consistent despite similar Bayesian evidence. The accompanying posterior distributions of these retrievals are available in Fig. C.3.
