Fig. 1.
Download original image

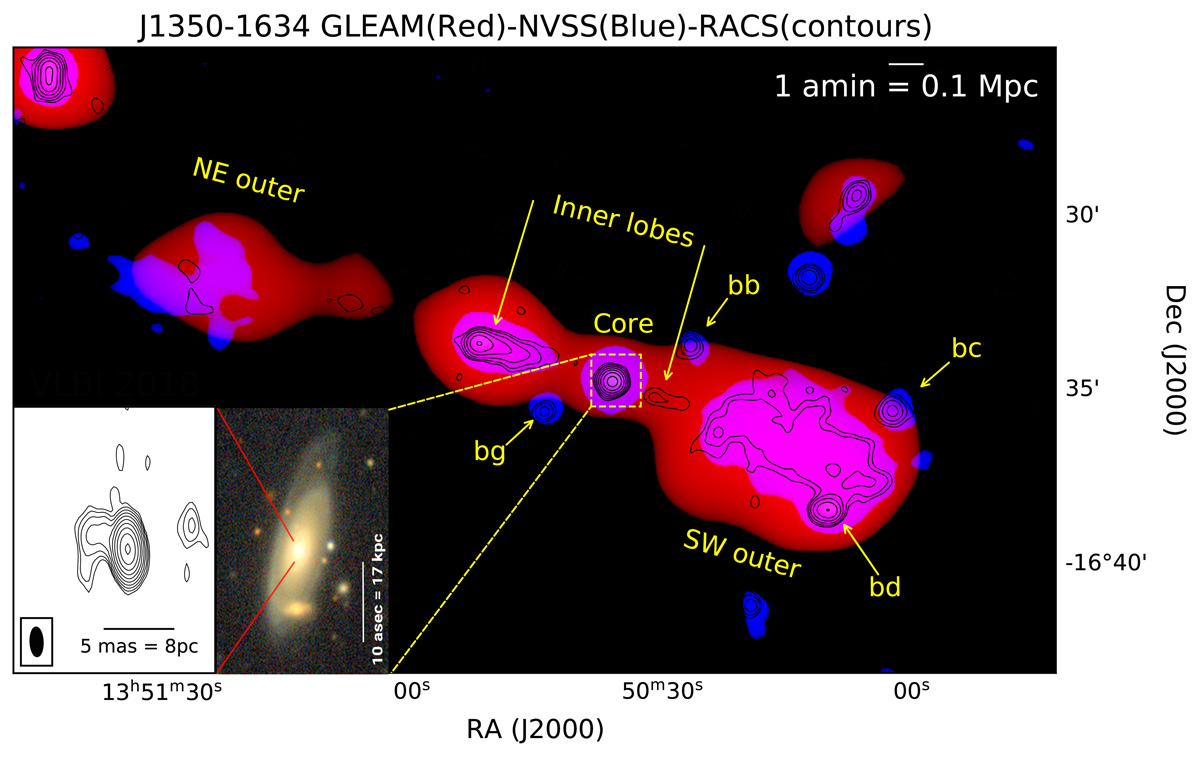

False-colour image of J1350−1634, in which red and blue colours represent GLEAM (200 MHz, with a root mean square (rms) of 15 mJy beam−1) and NVSS (1400 MHz, with a rms of 0.45 mJy beam−1), respectively. The thin black contours of RACS-mid (887 MHz, with a rms of 0.3 mJy beam−1) are plotted at 3 rms × 2n (n = 0, 1, 2, 3 …). Both red and blue pixels show values above 3 × rms for the respective data. The outer and inner lobes, as well as the core, are marked with yellow. Unrelated background radio sources are labelled ‘bg’, ‘bb’, ‘bc’, and ‘bd’. Two insets in the lower left corner show the colourful DESCal DR-10 optical image of the host galaxy LEDA 896325, and the VLBI-scale radio core with a one-sided jet, represented by 8.65 GHz contours.
