Fig. 16.
Download original image

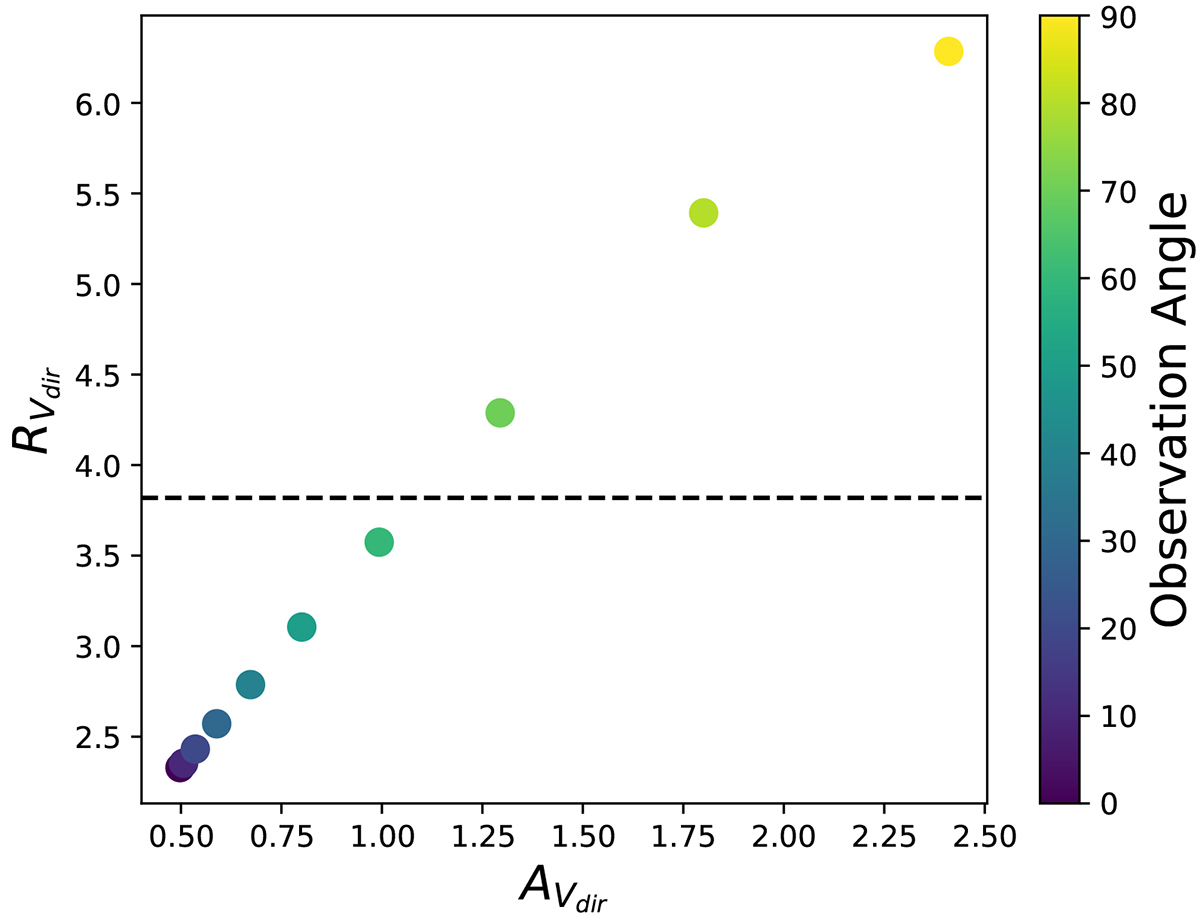

Values of RVeff as a function of AVeff for a simulation based on the M51 galaxy from DustPedia. Different colors denote different observation angles, from 0° (face-on) to 90° (edge-on). An aperture radius of 20 kpc was used. The galaxy dust density has been normalized so that the total optical depth along the R axis is τVR = 5. The dashed black line reflects the true extinction RVTHEMIS.
