Fig. D.1
Download original image

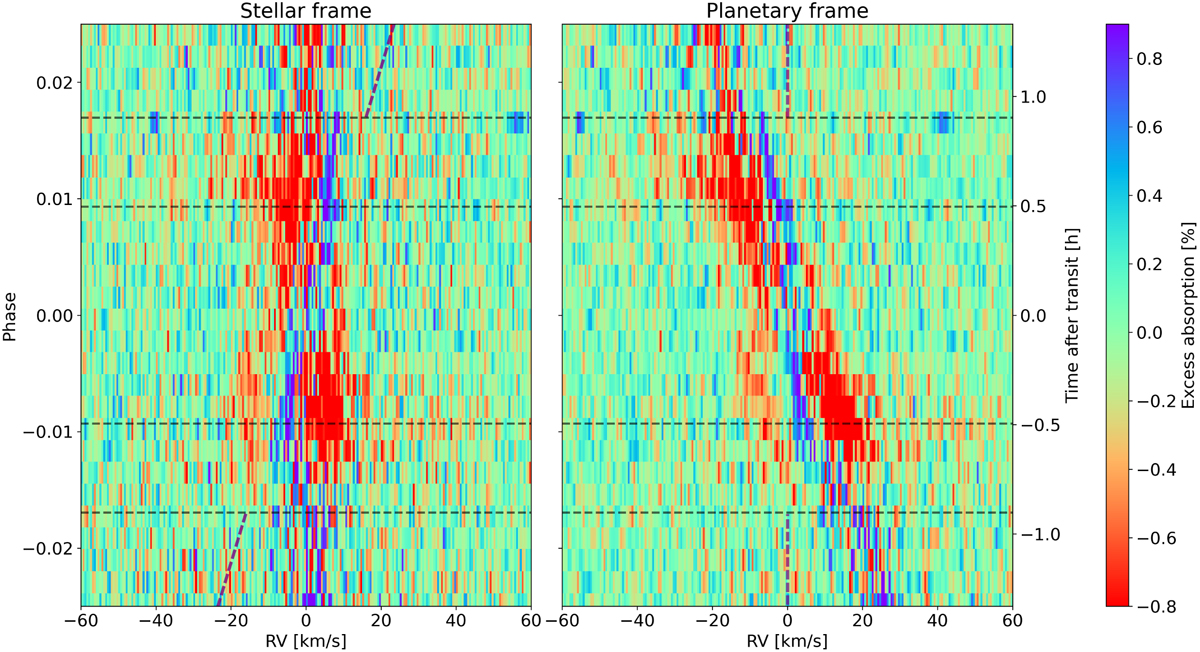

Transmission spectra map of HD 189733 b around the sodium doublet (co-added and both transits combined) before POLDs correction, in stellar and planetary rest frames respectively (see Fig. 12 for the post-correction map). The purple vertical dashed line indicates sodium planetary rest velocity and horizontal dashed lines show transit contacts T1, T2, T3 and T4 from bottom to top.
