Fig. 5
Download original image

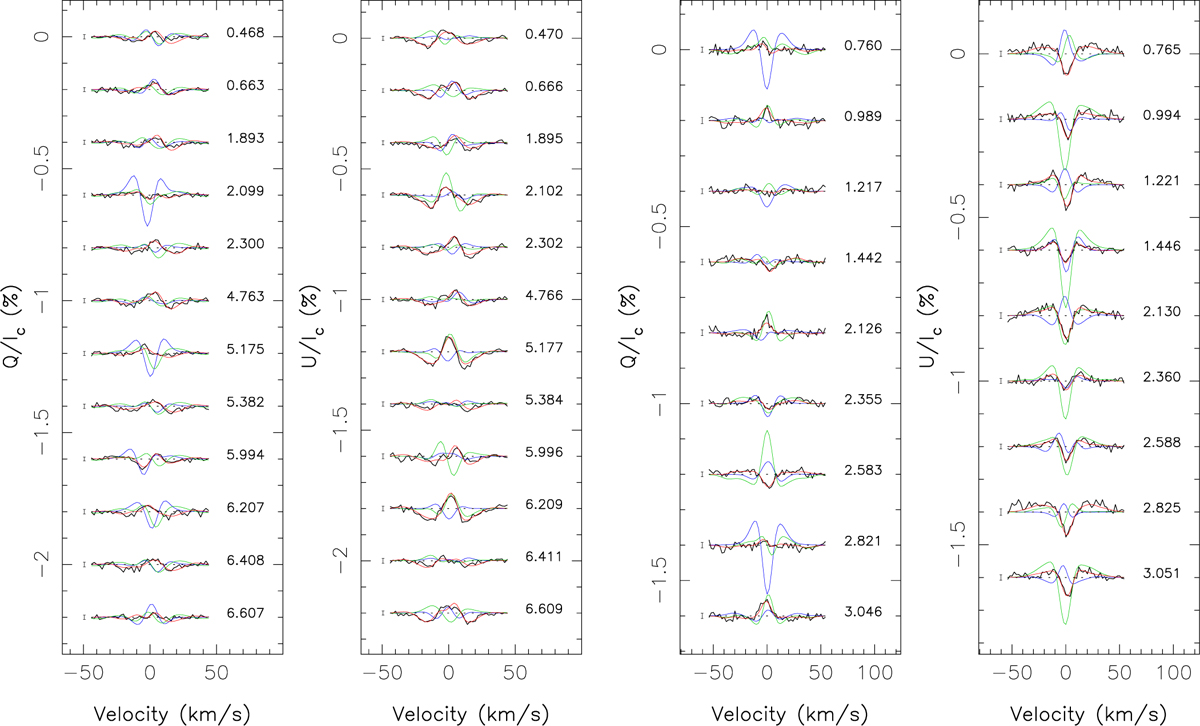

Same as the two rightmost panels of Fig. 1, now also showing the synthetic Stokes QU profiles associated with the Stokes V (blue line) and IV (green line) reconstructions, for both AU Mic (left panels) and EV Lac (right panels).
