Fig. I.2


Download original image

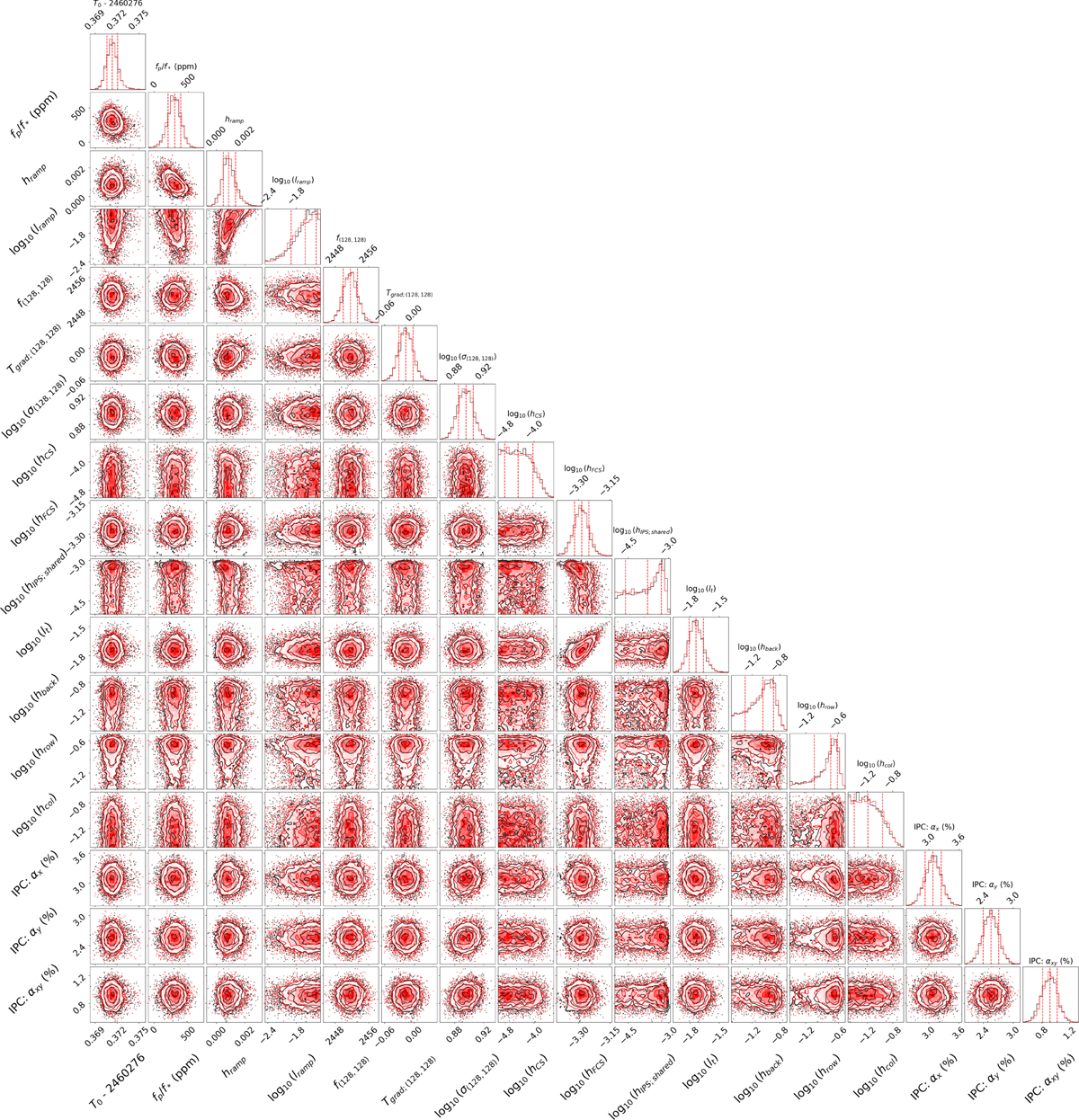

Corner plot of the first eclipse with the pixel-fitting method. Many parameters appear independent but we still find the eclipse depth is correlated with the detector settling parameters hramp and lramp, similar to Figure I.1. In addition, when the shared height scale of independent pixel systematics hIPS;shared is high, the height scale of flux-conserving systematics hFCS is reduced. This makes sense as the "bumps" seen in each pixel light curve in Figure 1 could in principle be fit as either flux-conserved systematics or independent systematics, but the model does clearly prefer to fit a non-zero flux-conserving systematics height scale hFCS while hIPS;shared is consistent with zero. This means the model favours that these "bumps" are flux-conserving and not independent.
