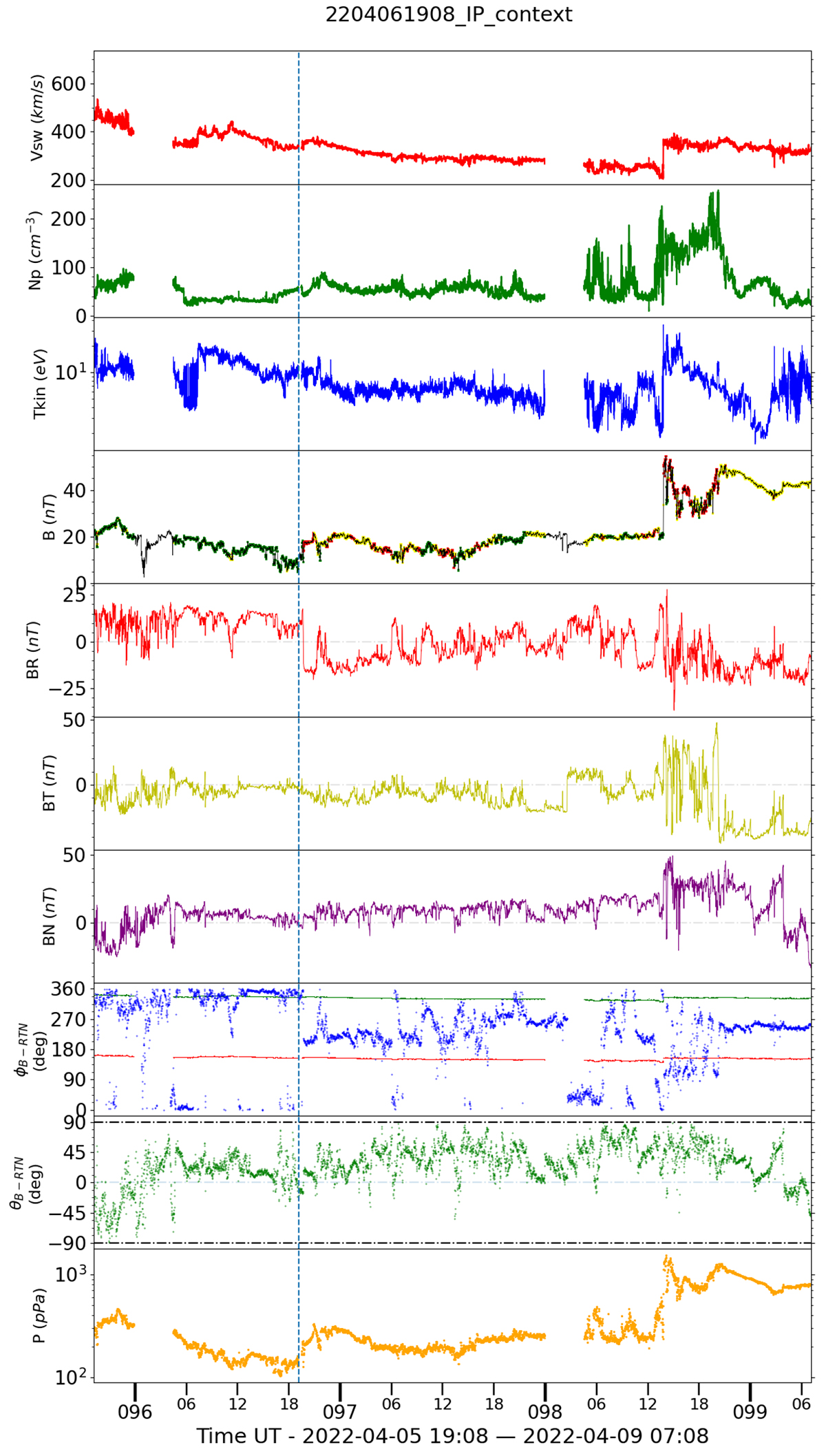

Example plot showing the conditions of the IP medium during a time window ranging from 1 day before until 2.5 days after an SEE onset on 2022 April 6 (shown as the vertical dashed line; event ID 2204061908). From top to bottom: solar wind proton speed, proton density, proton temperature, IP magnetic field magnitude accompanied by its polarity (red, negative; green, positive; yellow, ambiguous), RTN magnetic field separated components, magnetic field azimuthal angle in the coordinate system complemented with the two possible nominal Parker spiral angles (red, negative; green, positive. Derived from proton speed), IP magnetic field latitudinal angle, and total pressure.
