Fig. 3
Download original image

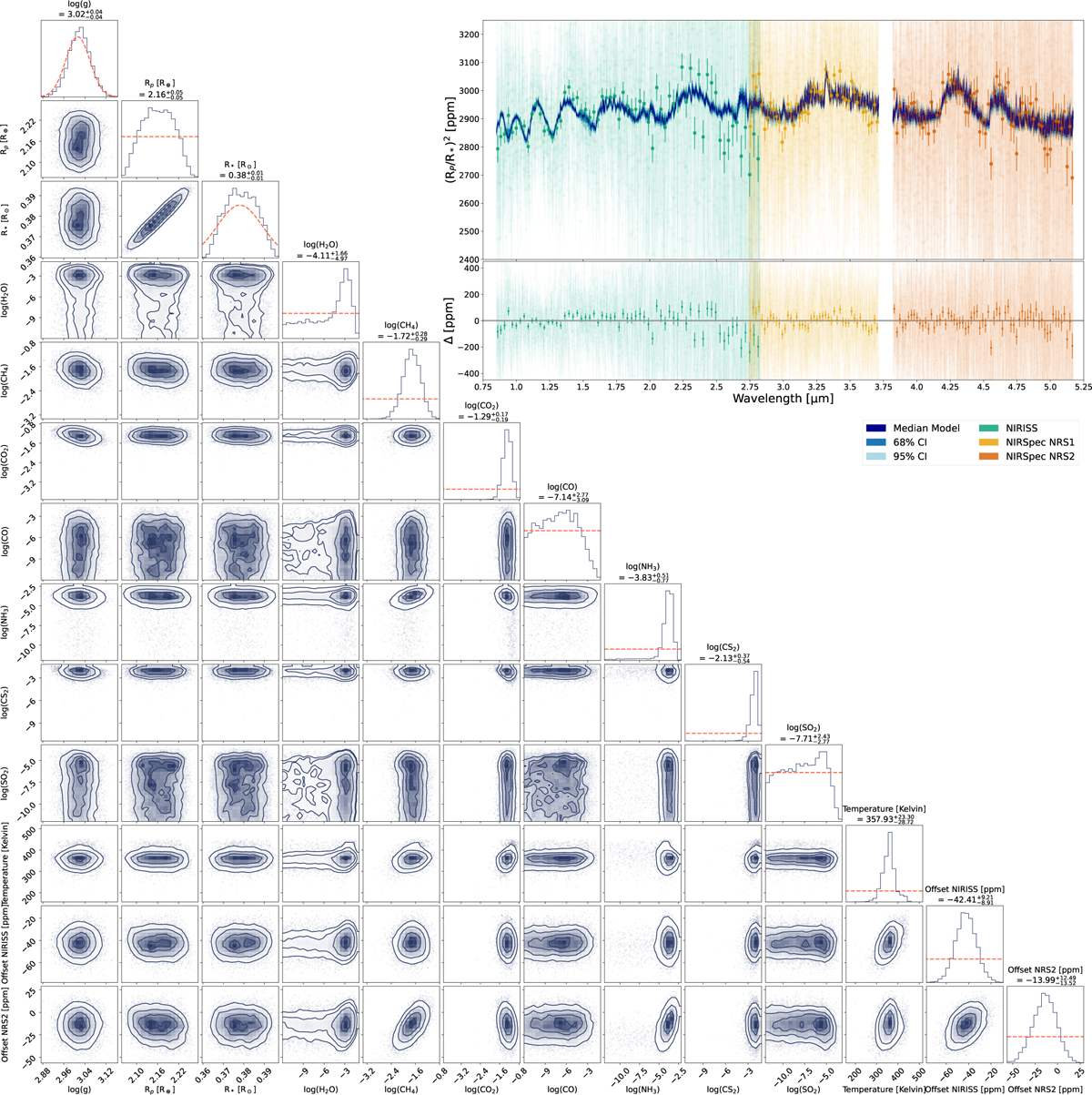

Posterior distributions and transit spectra of our fiducial model at the full spectral resolution of NIRISS SOSS GR700XD and NIRSpec G395H. The prior distributions for the retrieval parameters are shown in red. The top right shows the resulting transit spectrum models and the initial native resolution data. For visual aid, we also overplot a binned set of points for each dataset, the 32-pixel binning.
