Fig. 3
Download original image

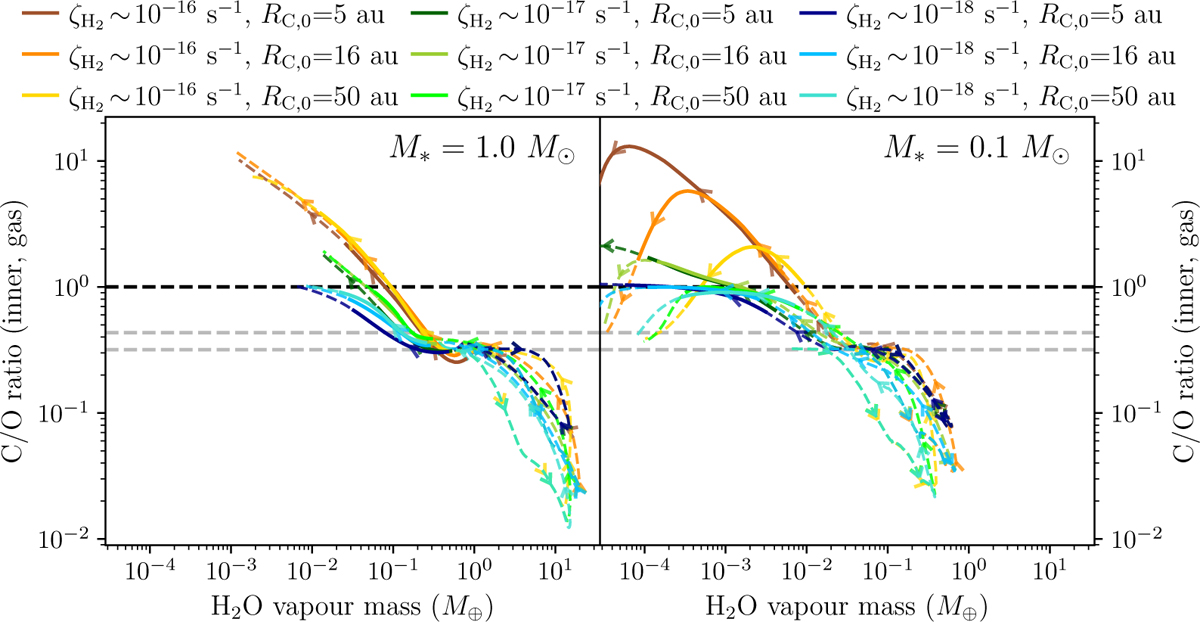

C/O ratio as a function of the inner disc H2O vapour mass (calculated as the total integrated H2O vapour mass inside of the midplane snowline) for the same models as Fig. 2b. The line styles are the same as in that figure, and the arrows illustrate the evolution with time.
