Fig. 9.


Download original image

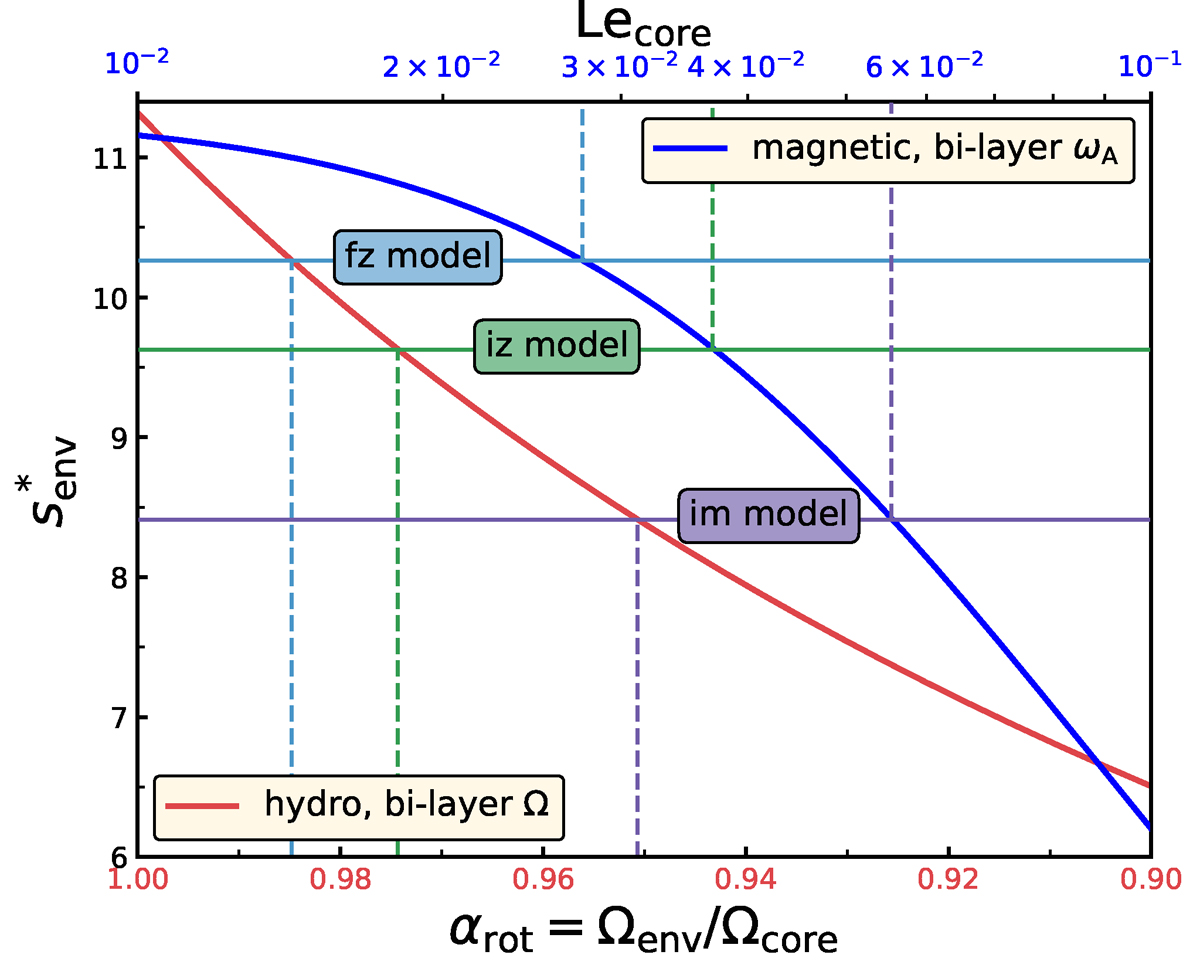

Red: Variation of s env $ s^{*}_{\mathrm{env}} $ in the hydrodynamic differentially rotating case with respect to the amount of differential rotation. Blue: MHD bi-layer Alfvén frequency case with respect to the core Lehnert number. The considered core Lehnert numbers translate to mid-core magnetic fields range from 0.5 to 5 MG in the fz model, and 0.25 to 2.5 MG in the im model. The horizontal thin lines represent the value of senv* expected for each of the models in the magnetostrophic regime. In the im model, a mid-core equatorial magnetic field in the magnetostrophic regime of 1.63 MG, corresponding to Lecore = 5.6 × 10−2, would shift the dip to senv* = 8.41 in a solid-body rotating magnetic model. This is the same effect as a differential rotation of αrot = 0.951 in the differentially rotating hydrodynamic model.
