Fig. 8.
Download original image

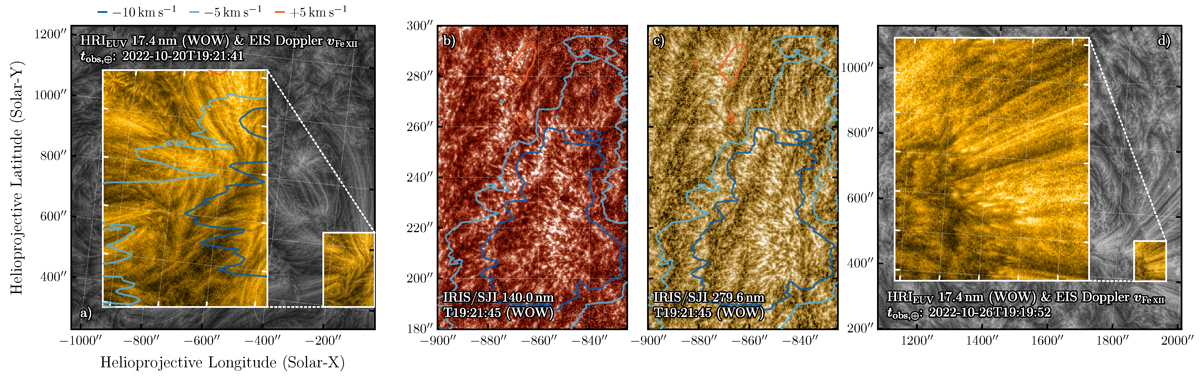

Western upflow region in the fan-like loops (online movies 3 and 4). (a) Zoomed-in plot of the upflow region observed by HRIEUV on 2022 October 20 with EIS Doppler velocity contours overplotted. (b) and (c) IRIS/SJI images of the western upflow region on 2022 October 20 with EIS Doppler velocity contours. (d) HRIEUV image of the western upflow region on 2022 October 26. The evolution of fine structures is available as online movies 3 and 4. Link to the Jupyter notebook creating this figure: 📘.
