Fig. 9
Download original image

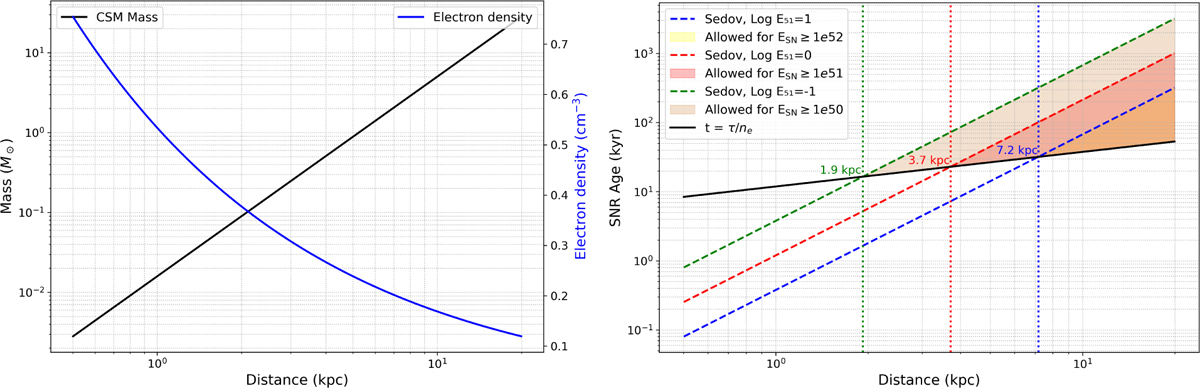

Left panel: inferred shocked mass (black) and electron density (blue) of the CSM region as a function of the distance. Right panel: age of the CSM region estimated adopting the Sedov-Taylor (Sedov 1959; Taylor 1950) solution and assuming density in the LOFAR ring is the same as the one we measured from the X-rays (green, orange, and blue dashed lines indicating explosion energies of 1050, 1051, and 1052 erg). The solid black line indicates the age estimated using τ. The red, yellow, and brown areas mark the allowed distances. See text for details.
