Fig. B.1.


Download original image

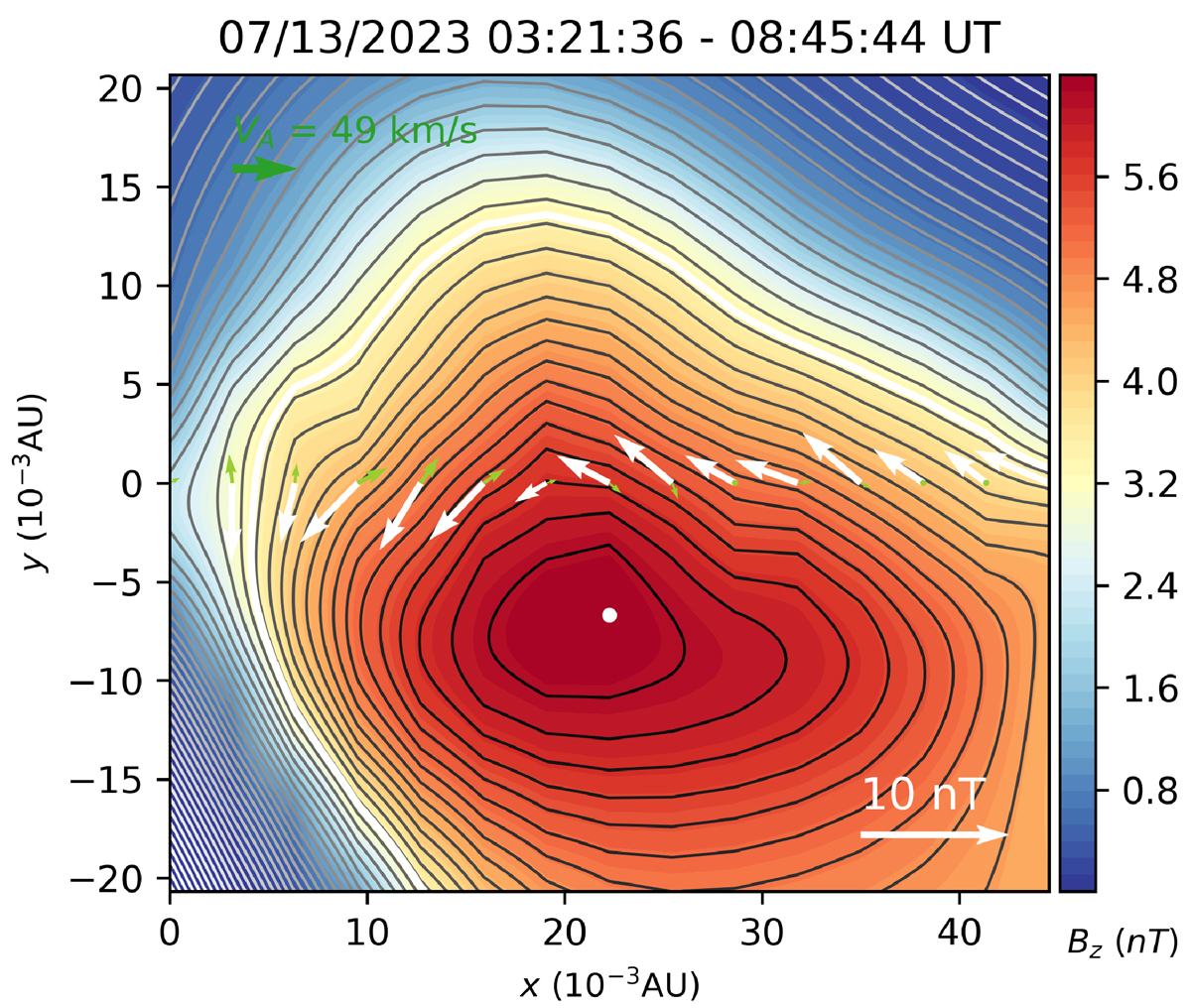

Standard cross-section map from the GS reconstruction of the small-scale magnetic flux rope observed by Solar Orbiter on July 13, 2023, from 03:21:36 to 08:45:44 UT. The colour map represents Bz as indicated by the colour bar, while the black contours represent the transverse field lines. The spacecraft path is along the line y = 0, with the measured transverse field vectors marked by the white arrows.
