Fig. G.1
Download original image

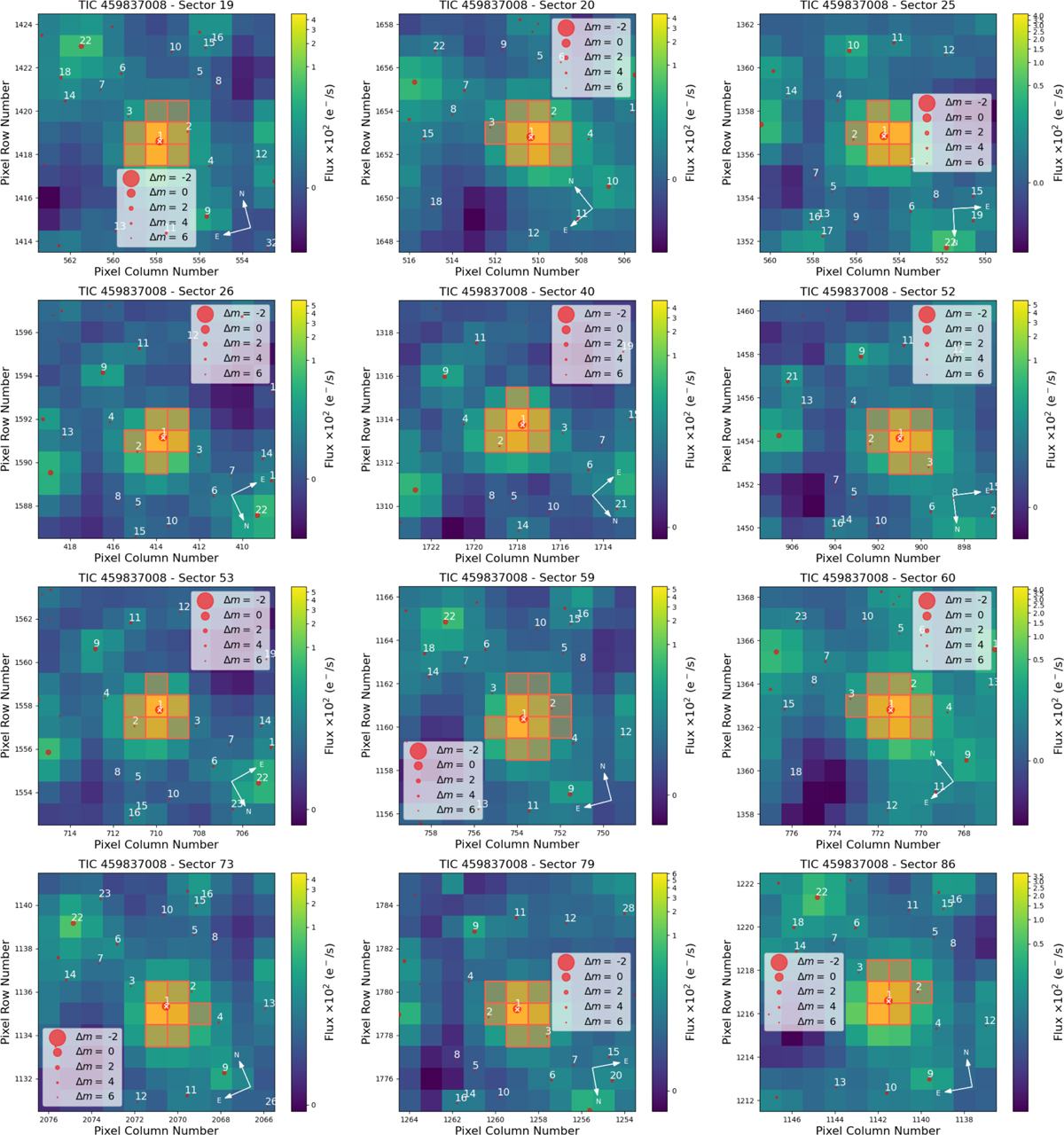

TESS target pixel files (TPFs) showing the field of view of the 12 sectors used in this study, generated employing tpfplotter (Aller et al. 2020). The photometric apertures used to extract the light curves in each case are shown as red-shaded regions. The Gaia DR2 catalogue is overplotted, with all sources up to six magnitudes in contrast with TOI-2267 shown as red circles. We note that the symbol size scales with the magnitude contrast. The target star, TOI-2267, is highlighted with a white cross and numbered as 1 in all cases.
