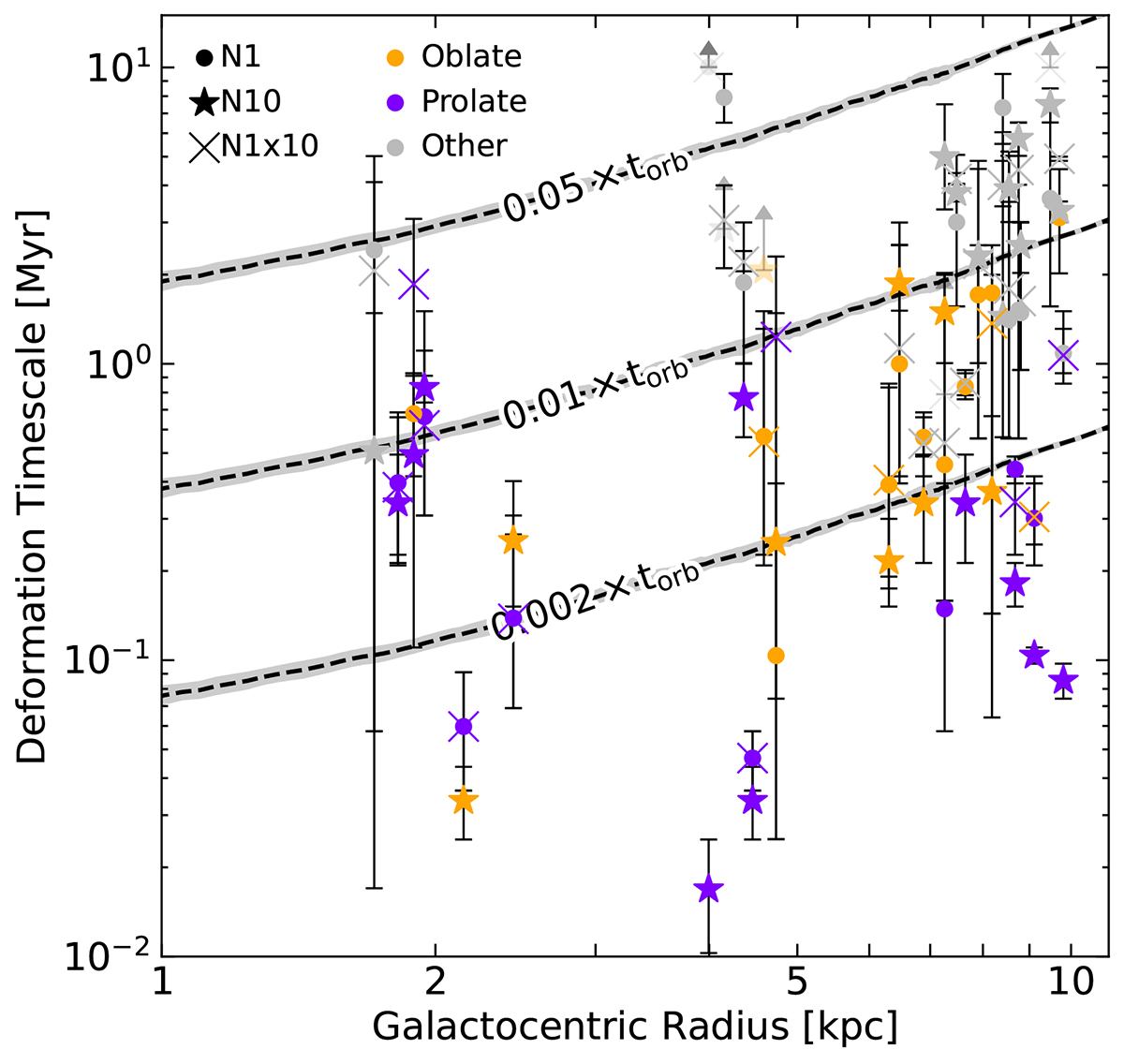

Fig. 13.
Download original image
Deformation timescale as a function of galactocentric radius. Uncertainties arise due to the finite spacing of the snapshots and due to the choice of Zej, thr. For visibility, markers are slightly shifted around their respective radii Rgal = 2, 4.5 and 8 kpc, with the same shift used for the same SNR, but different explosion model. Typical deformation timescales are on the order of a few percent of the orbital timescale at each radius, slightly shorter than what is expected from deformation by galactic shear alone.
