Fig. 11.


Download original image

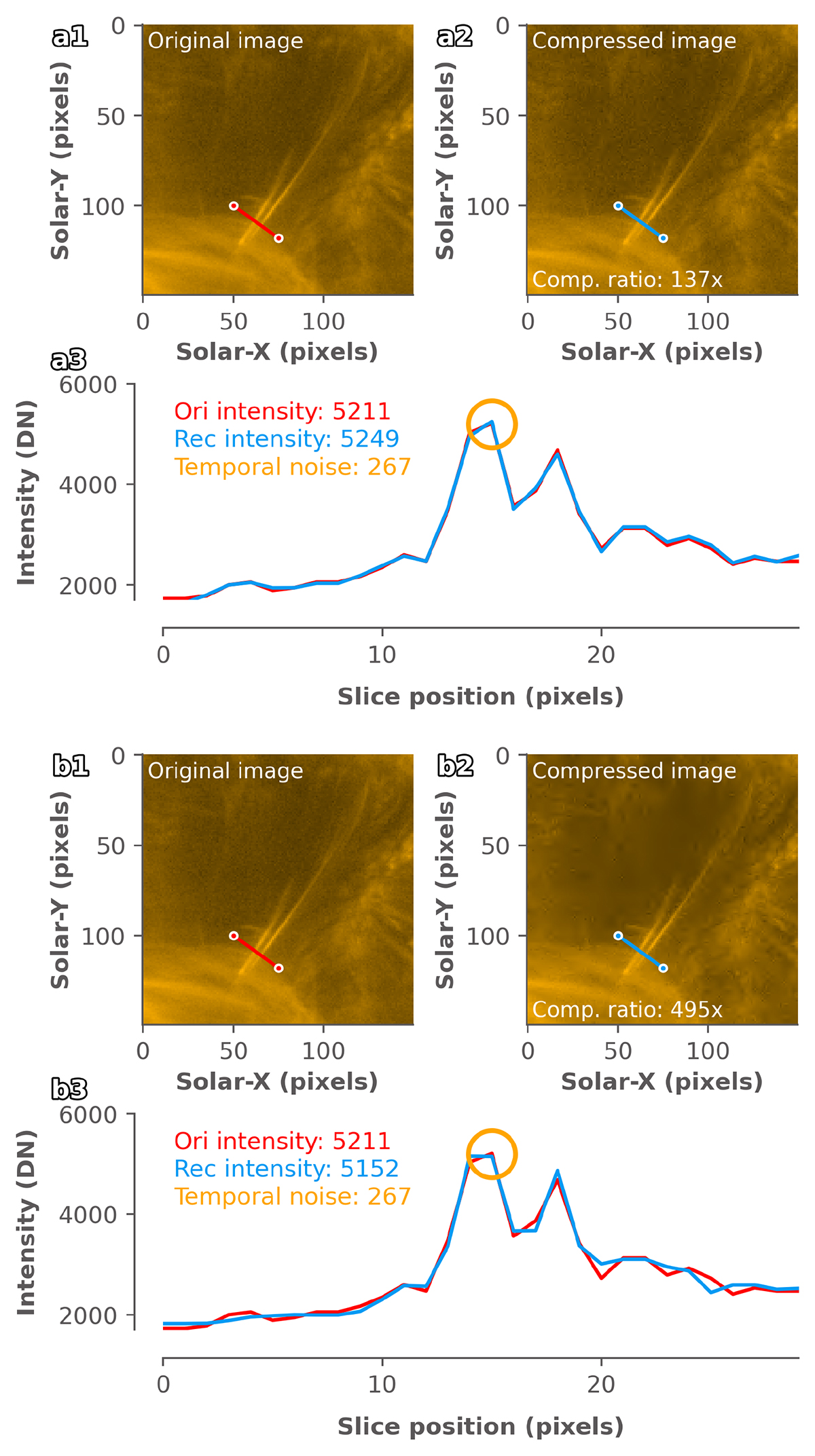

Comparison of algorithm-induced errors versus HRIEUV temporal noise errors. Panel a: Intensity distributions extracted across the jet structure from both the original HRIEUV image and the image with 137× compression ratio. Panel b: Intensity distributions extracted across the jet structure from both the original image and the image with 495× compression ratio. The intensity maxima in the cross-jet intensity distributions are marked for each image.
