Fig. 8.
Download original image

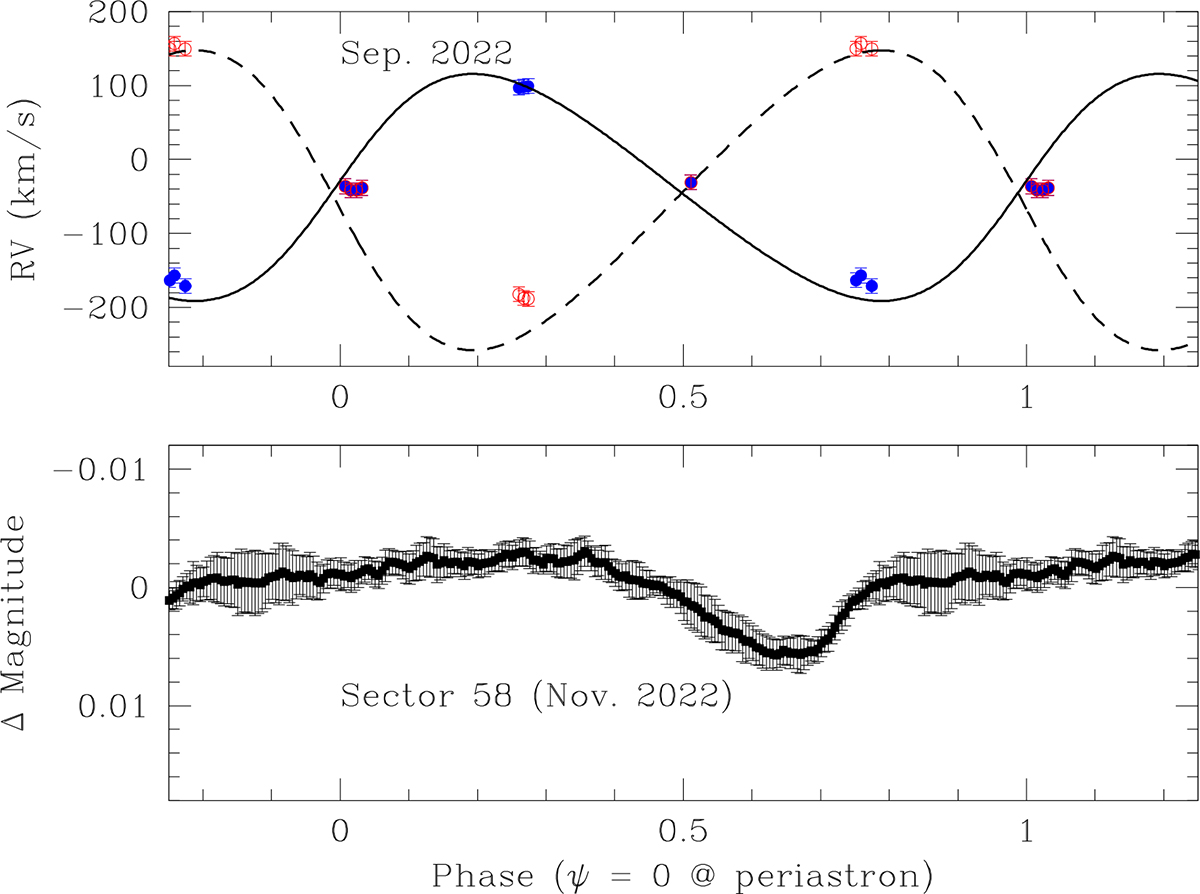

Orbital solution and light curve of BD+60° 497 in the autumn 2022. Top panel: RV data along with our best-fit orbital solution accounting for apsidal motion (see Table 1). Primary RVs are shown in blue, secondary RVs in red. Only the primary RVs at phases with a RV separation larger than 200 km s−1 were included in the RV fit. RVs at phases when the lines are heavily blended are shown here but were not used in the fit. Bottom panel: TESS Sector 58 light curve folded with the same ephemerides. Phase 0.0 is periastron. Conjunctions occurred at phases 0.992 (primary in front) and 0.486 (secondary in front).
