Fig. A.1.
Download original image

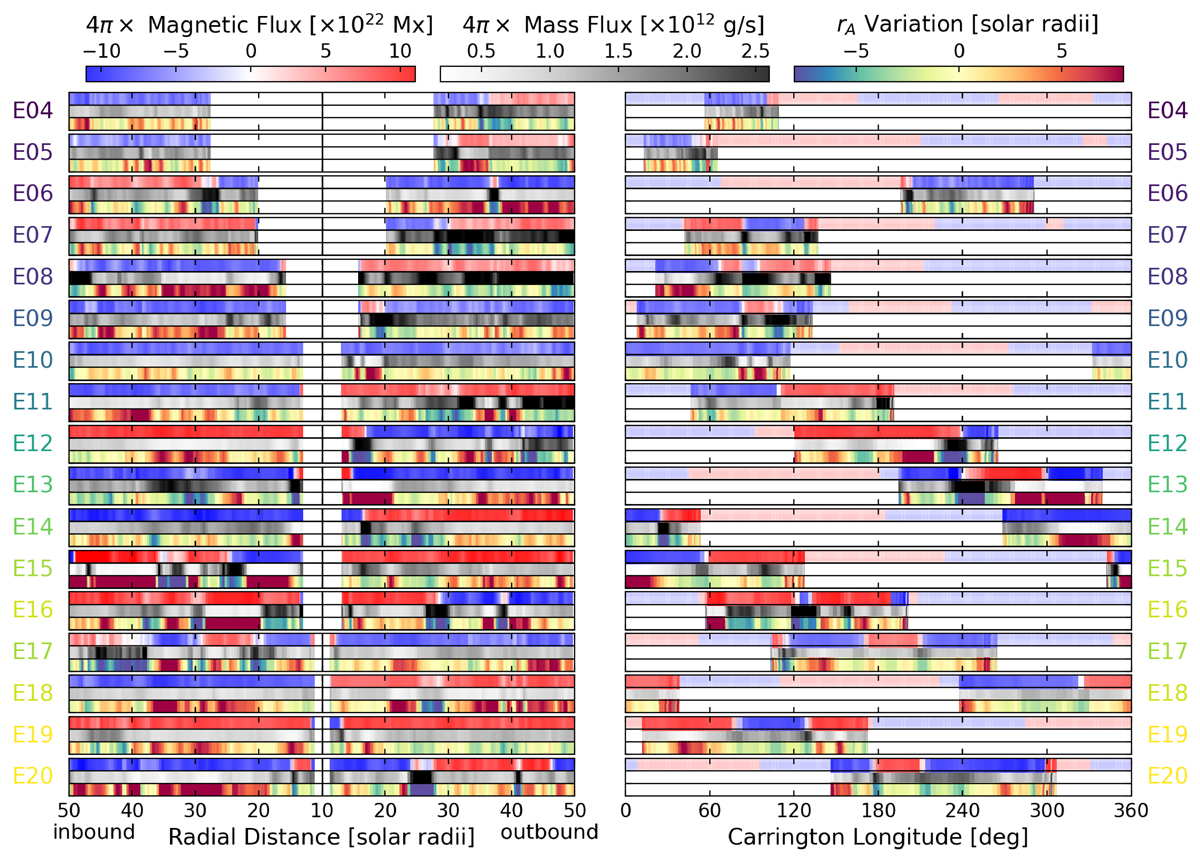

Similar to Fig. 1 but now for the magnetic flux (FB), mass flux (Fm), and variation in the Alfvén radius (rA − ⟨rA⟩). The encounter labels are coloured by solar activity from dark to light. The magnetic field polarity at the solar equator from the PFSS models is shown in light blue and red in the background of the magnetic flux panels.
