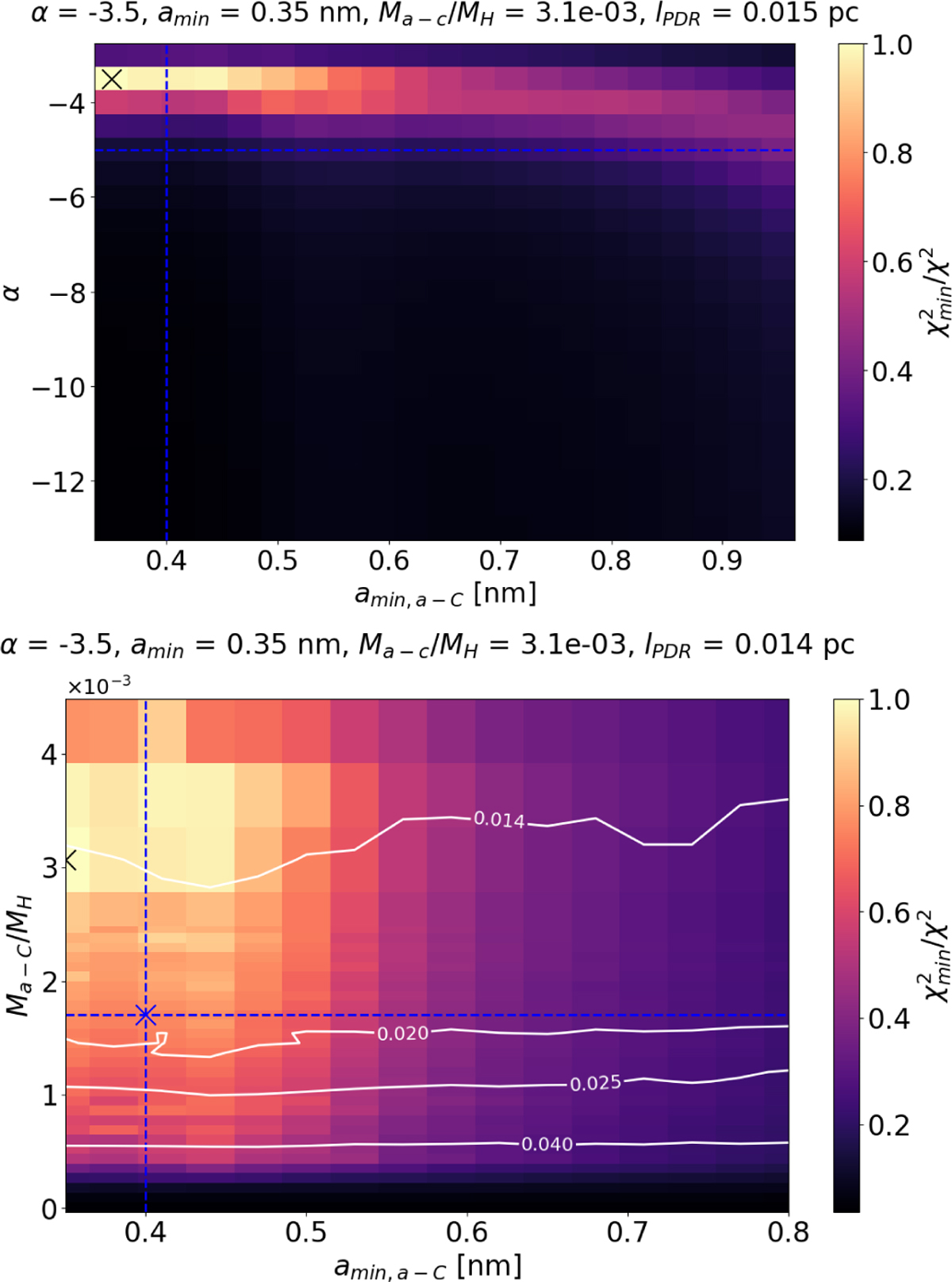

Constraints obtained from χmin2/χtot2$\[\chi_{min}^2 / \chi_{tot}^2\]$ maps with χmin2=min(χtot2)$\[\chi_{min}^{2}=\min \left(\chi_{\text {tot}}^{2}\right)\]$ and χmin2/χtot2$\[\chi_{min}^2 / \chi_{tot}^2\]$ = 1 for the best fit. Top: χmin2/χtot2$\[\chi_{min}^2 / \chi_{tot}^2\]$ in the 2D space (α and amin,a–C). Bottom: χmin2/χtot2$\[\chi_{min}^2 / \chi_{tot}^2\]$ in the 2D space (Ma–C/MH, amin,a–C). The white lines indicate the best-fitting lPDR for each combination of Ma–C/MH and amin,a–C. A degeneracy is generally observed between solutions with high Ma–C/MH and low lPDR. The cross marker shows the parameters that minimize χtot2$\[\chi_{\text {tot}}^{2}\]$, representing the best fit. The dashed blue lines indicate the DISM values (Ma–C/MH, = 0.17 × 10−2, amin,a–C = 0.4 nm, α = −5).
