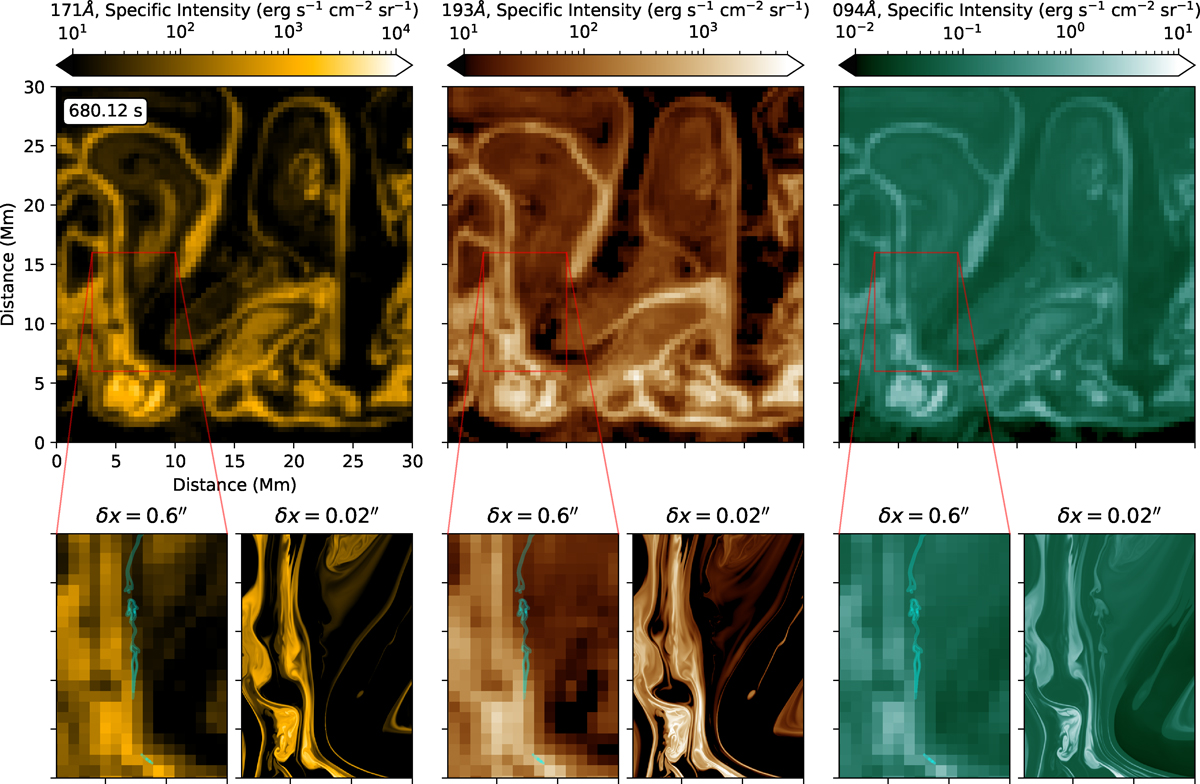

Synthetic intensity counterparts to the simulation for AIA 171, 193, and 094 Å at 680.12 s, convolved and de-resolved with the 0.6″ platescale PSF of the AIA instrument on board SDO. The lower row zooms in on the jet indicated by a high M_A in Figures 8D–F (overlaid and contoured in cyan); the left and right panels of each passband are at the AIA 0.6″ and AMRVAC 0.02″ resolution, respectively.
