Fig. D.9
Download original image

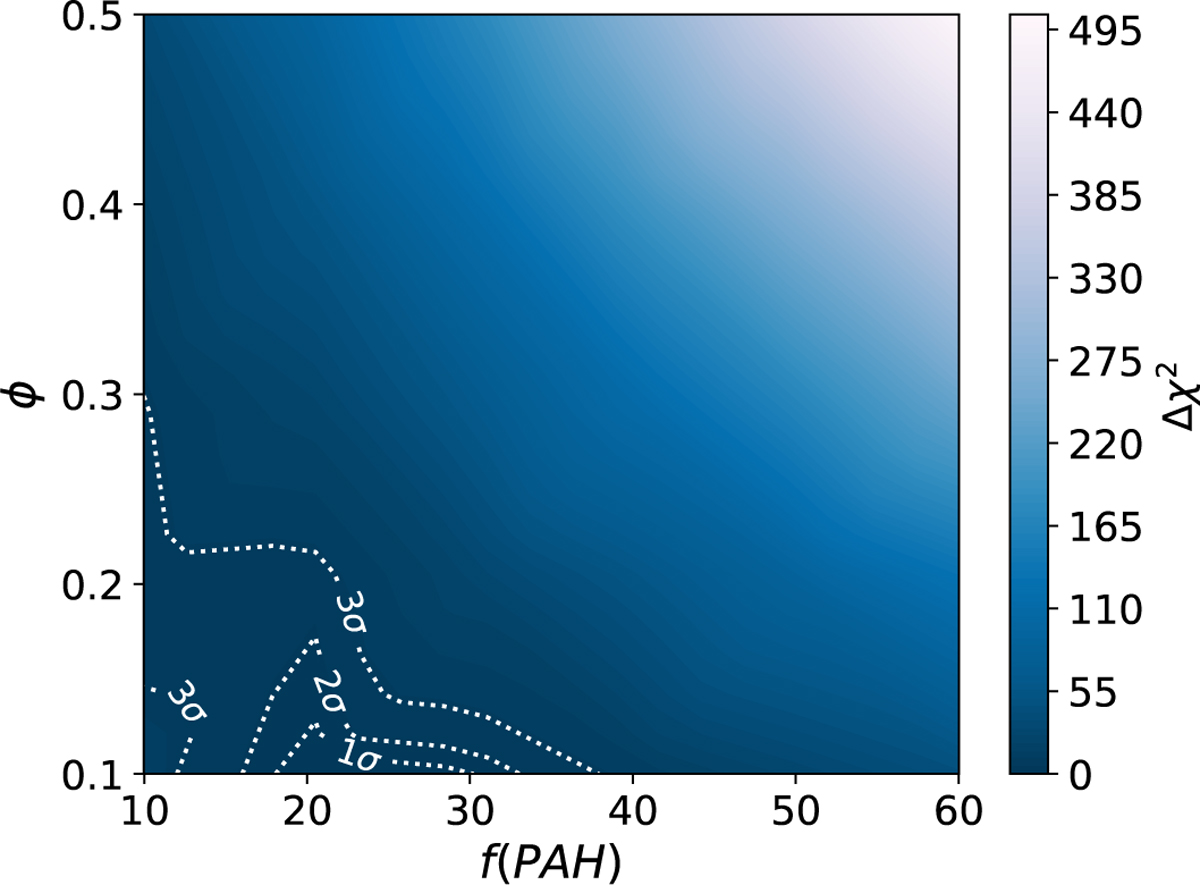

Δχ2 contours of the fits to the observed 6.2/8.1, 6.2/11.3, and 8.1/11.3 μm AIB ratios in ϕ - fPAH parameter space (for NC,min = 10 and NC,max = 20 corresponding to the minimum χ2 model, see text in Sect. 6.2.2).
