Fig. 5.
Download original image

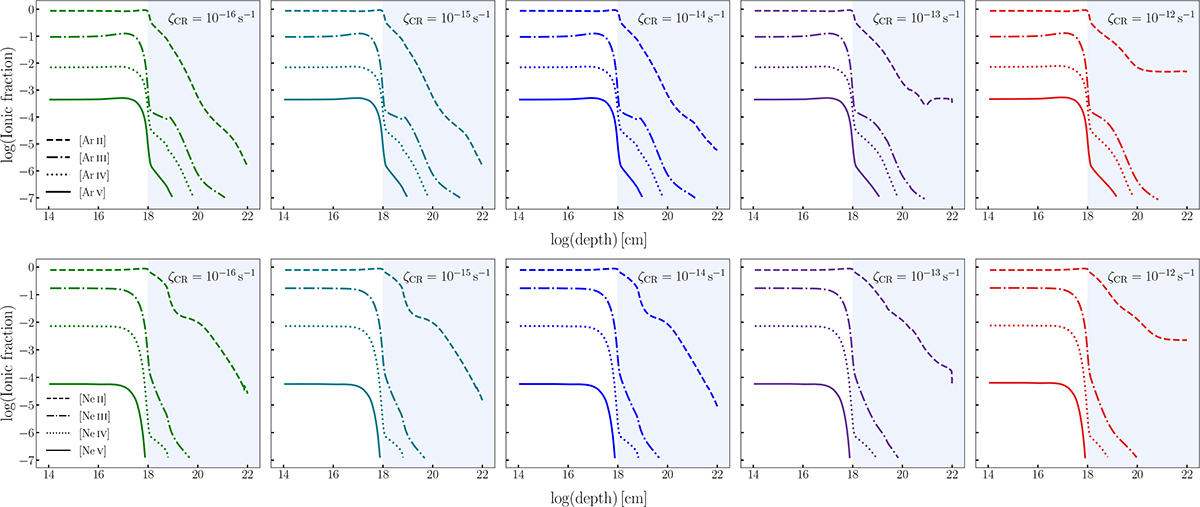

Ionic fraction vs. depth in the simulated cloud for AGN models, for an initial density of nH = 100 cm−3, and for ζCR = 10−16 s−1, 10−15 s−1, 10−14 s−1, 10−13 s−1, and 10−12 s−1, from left to right. Top row: Ar ionic fractions. Bottom row: Ne ionic fractions. The blue-shaded area indicates the approximate region where CR heating becomes dominant.
