Fig. 1.


Download original image

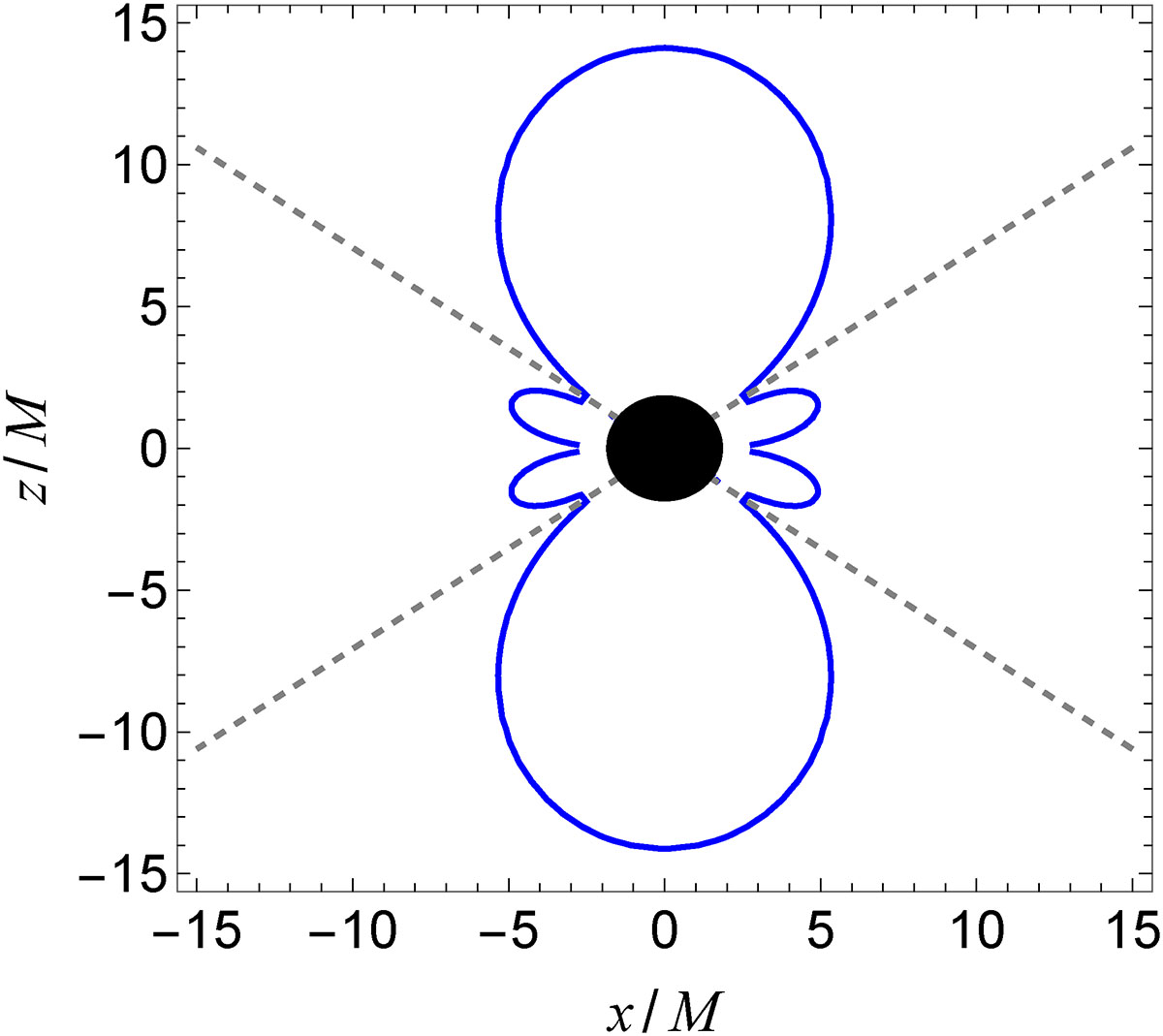

Contour of constant electric field intensity E = E c $ \tilde E = E_c $ (solid blue curve), in the x-z plane of Kerr-Schild, Cartesian coordinates. The black-filled disk is the Kerr BH horizon. In this example, the BH spin parameter is ξ = 0.5 and magnetic field strength β = 200, which corresponds to B0 = 8.8 × 1015 G. The dashed gray lines show the ends of the polar lobes which have a semi-aperture spherical polar angle θ p arccos ( 3 / 3 ) 55 ° $ \theta_p \approx \arccos{(\sqrt{3}/3)}\approx 55\circ $.
