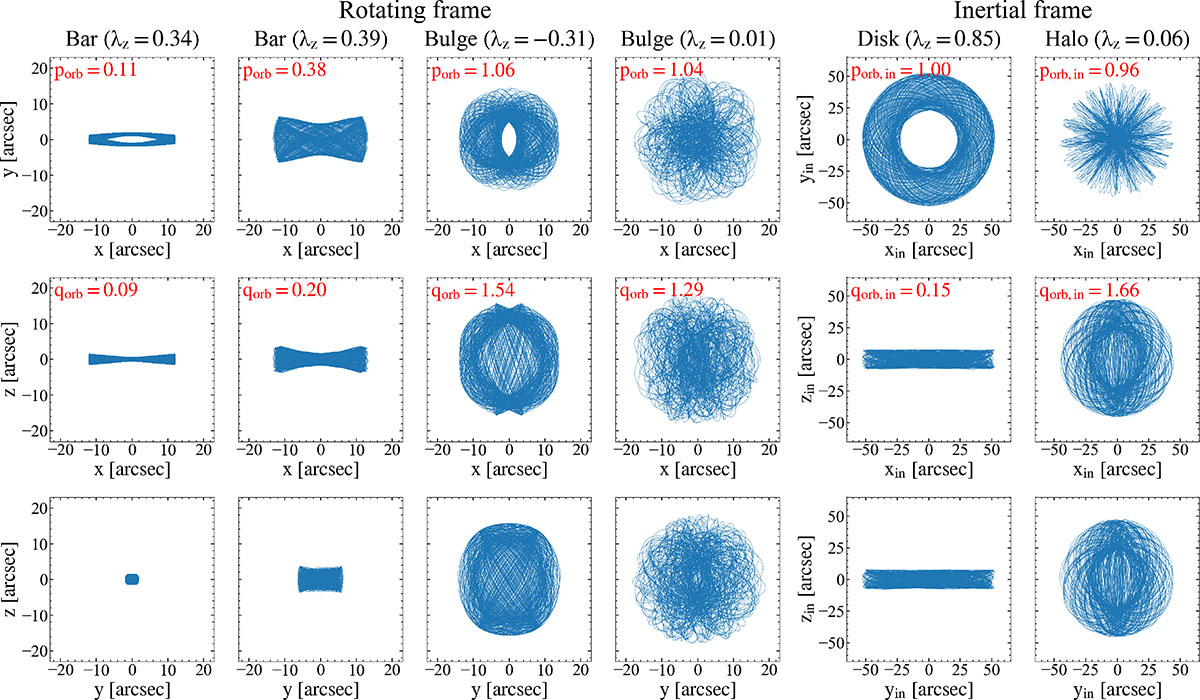

Trajectories of several representative orbits for Au-23-85-50. The first four columns display the orbital trajectories in the x-y, x-z, and y-z planes (the bar’s rotating frame), including two bar orbits and two bulge orbits, with their axis ratios p_orb and q_orb presented in the text. The fifth and sixth columns show the orbital trajectories in the x_in-y_in, x_in-z_in, and y_in-z_in planes (the inertial frame), including a disc orbit and a halo orbit, with their axis ratios, p_orb, in and q_orb, in, presented in the text. We note that p_orb and q_orb are calculated in the bar’s rotating frame, while λ_z, p_orb, in, and q_orb, in are calculated in the inertial frame.
