Fig. 9
Download original image

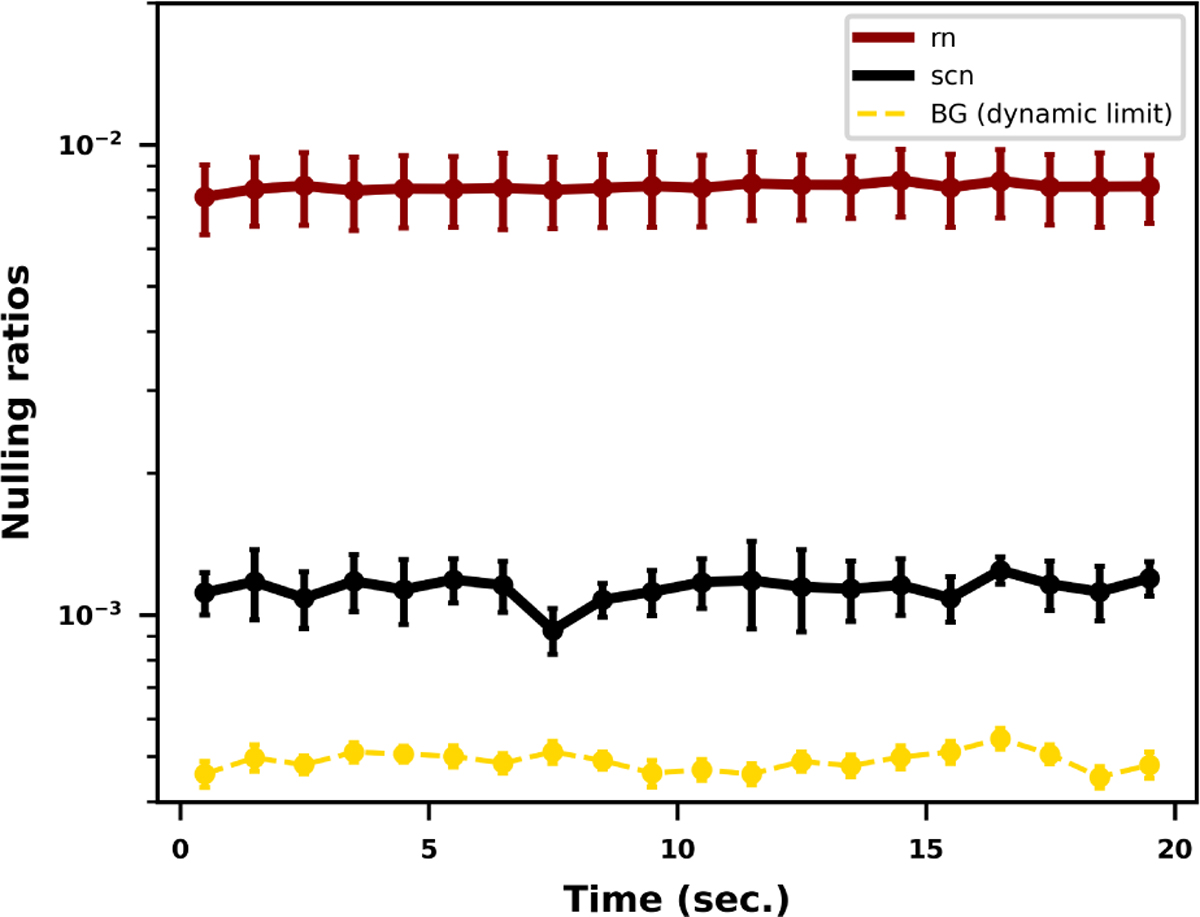

Self-calibrated (scn) and raw (rn) nulling ratio measured with the photonic 4T-nuller. The dashed yellow line shows the limit in the attainable dynamic range at room temperature set by the thermal background. Each point gives the mean value and the error on the mean estimated over 50 frames.
