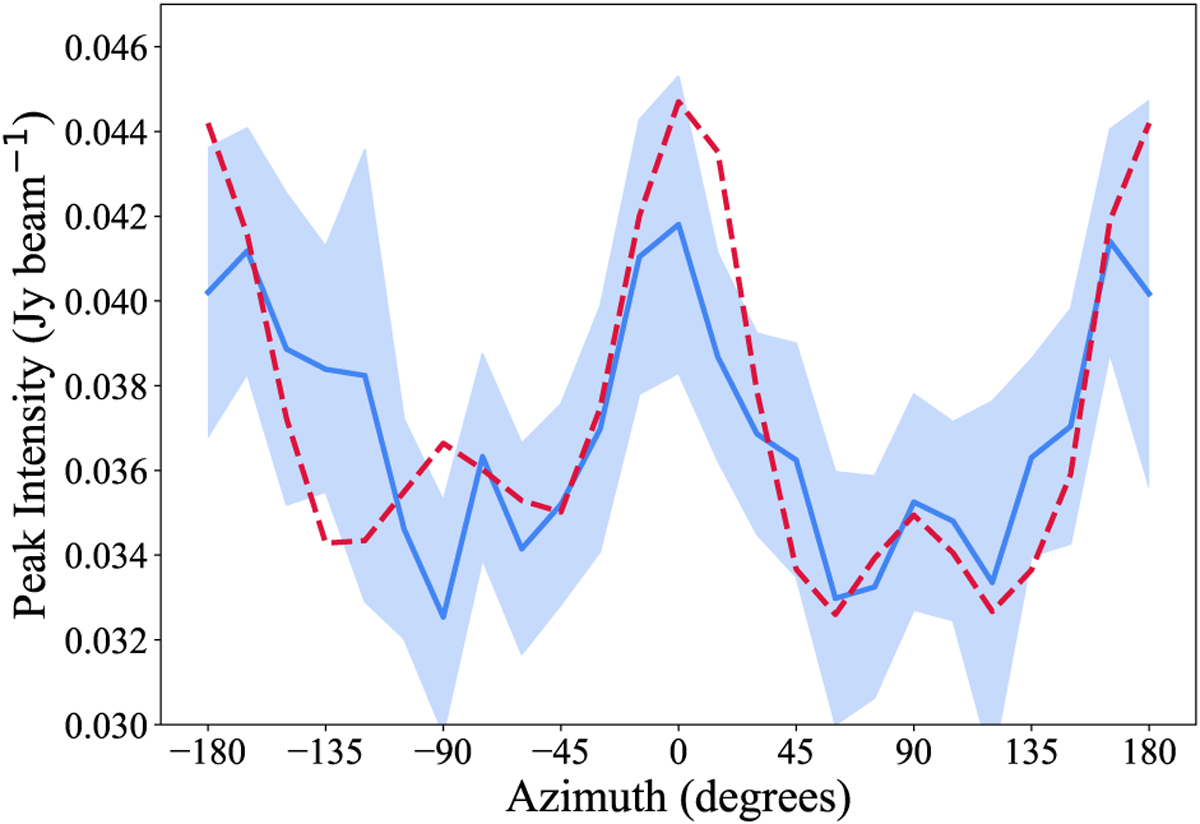

Peak intensity (Jy beam⁻¹) for the ¹²CO data (blue line) and the RADMC-3D optically thin model (dashed red line), with the peak intensity for each azimuth (assuming azimuthal sections of 15° for the data) derived by fitting a Gaussian to each spectrum across all azimuths using an MCMC approach for both the model and data. For both the model and the data, an annulus between $0_{\cdot }^{\mathrm{\prime }\mathrm{\prime }}61$ and $0_{\cdot }^{\mathrm{\prime }\mathrm{\prime }}63$ (corresponding to the disc’s peak radial surface density) is extracted. The error bars for the ¹²CO ALMA data (shaded regions) have been re-scaled by a constant factor, which was fitted for.
