Fig. 11
Download original image

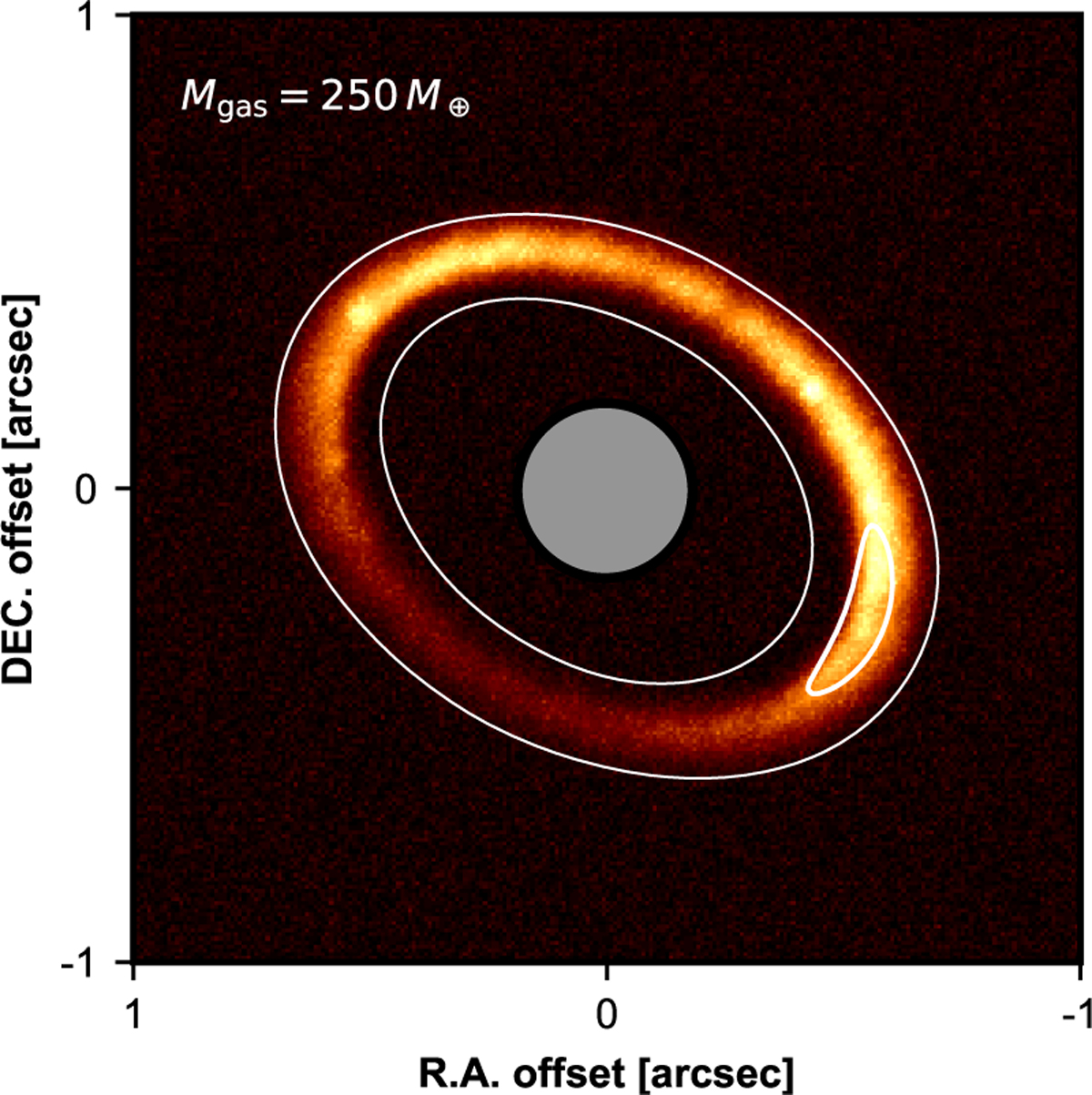

Same as right panel of Fig. 8 but for the model that assumes a higher gas mass, with Mgas=250 M⊕. The contours delineate the ALMA band 7 continuum emission. The model fails to reproduce the characteristic features of the J-band image (cf. right panel of Fig. 1), i.e. the radial dislocation with respect to the ALMA ring, and the ring’s sharpness.
