Fig. E.1
Download original image

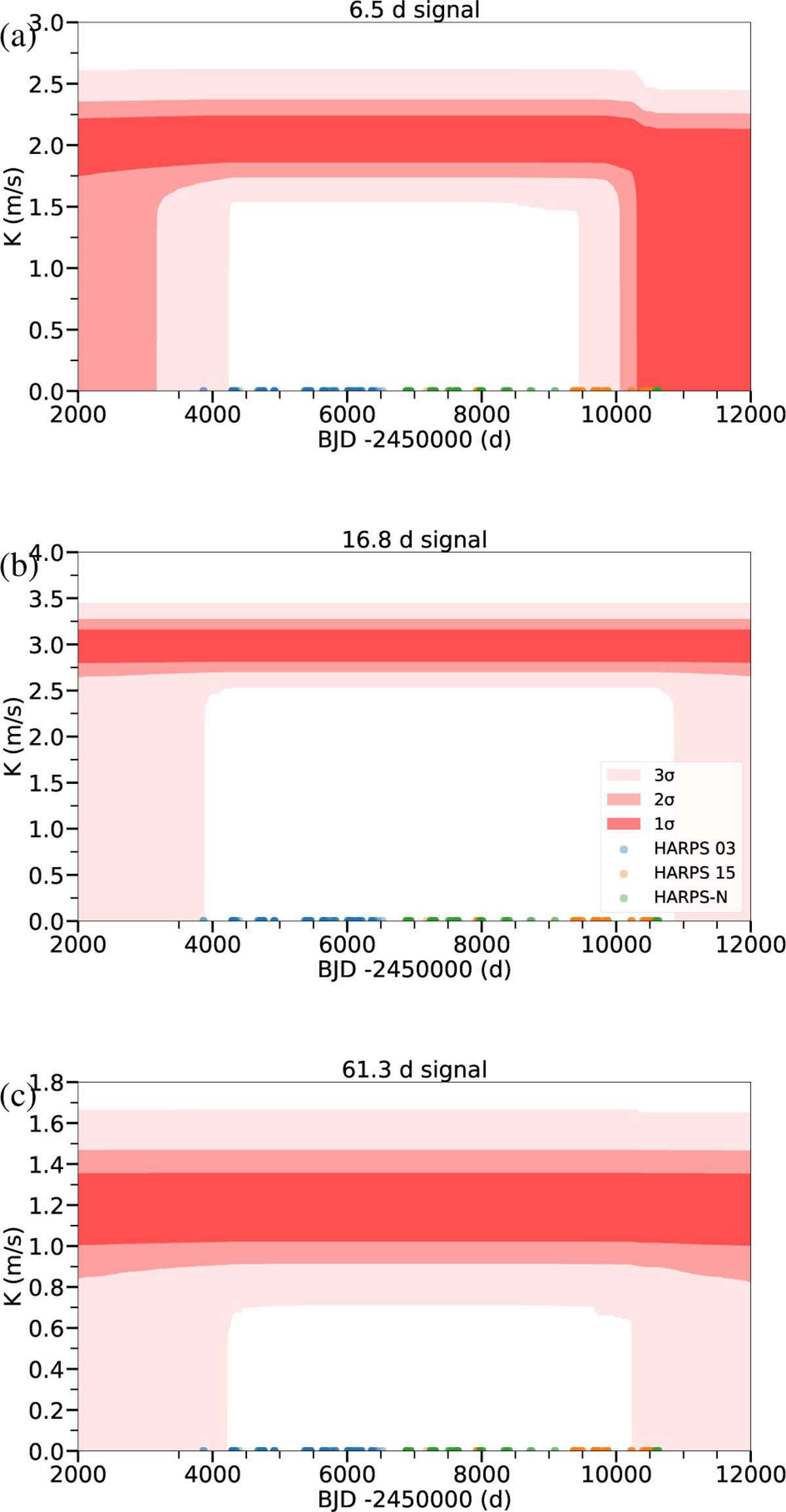

Box test for the three planets orbiting around HD 176986. Color-coded dots on the x axis represents the observing epochs for each instrument. Panel (a): Box test for HD 176986 b. The planetary signal is stable at most of the observing epochs, with a decrease in amplitude after BJD = 2460000. Panel (b): Box test for HD 176986 c. We see how the planetary signal is stable at all the epochs of observation. Panel (c): Box test for HD 176986 d. The planetary signal is stable in amplitude at every epoch.
